Radiator Lower Insulator Replacement

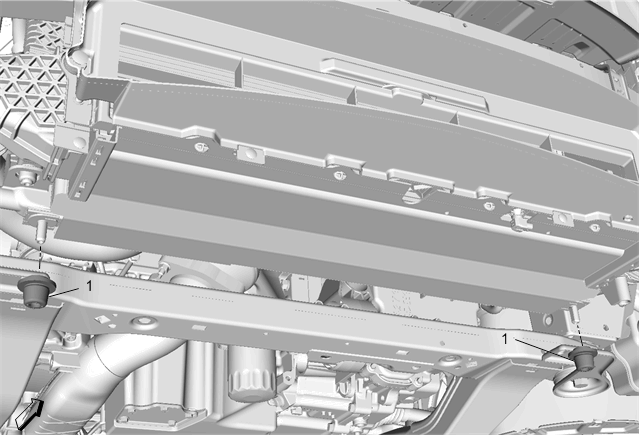

Fig 1: Radiator Lower Insulator
GM3828914Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front End Lower Tie Bar Replacement
1 Radiator Lower Insulator (Qty: 2)
