Rear Side Door Window Inner Sealing Strip Replacement

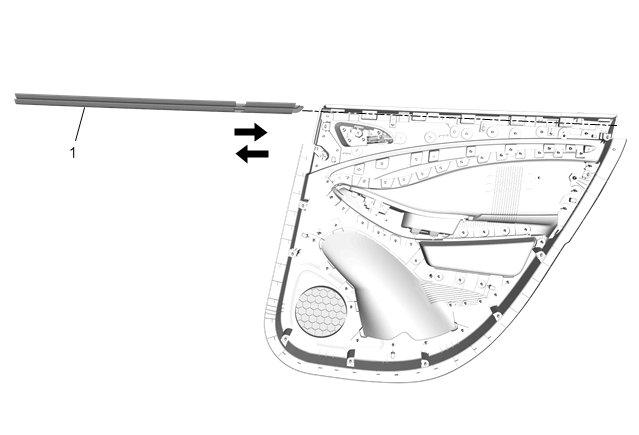

Fig 1: Rear Side Door Window Inner Sealing Strip
GM3818012Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Trim Replacement
1 Rear Side Door Inner Window Sealing Strip

Procedure

  1. Slide the sealing strip out of the door trim.
  2. Slide the sealing strip through the door trim.
