Front Side Door Window Regulator Replacement (Passenger Side)

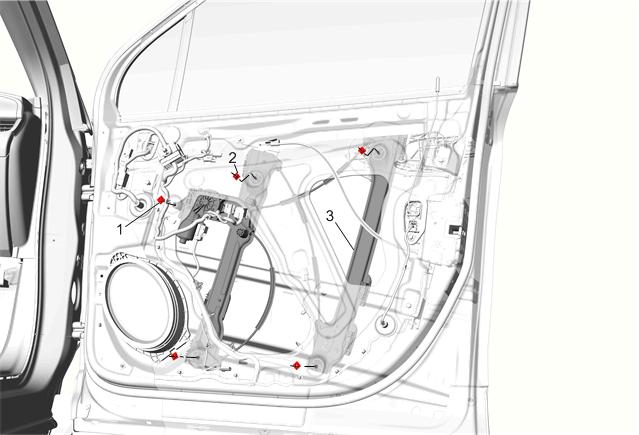

Fig 1: Front Side Door Window Regulator (Passenger Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Express Window Down Warning . Preliminary Procedures Front Side Door Armrest Bracket Replacement Remove the water deflector. Using the appropriate tool, push the front side door window sash clips outward, while pulling up on window to release the window from the sash clips. After detaching window from regulator, manually move window to the full up position and tape to frame. Disconnect the electrical connector.
1	Front Side Door Window Regulator Bolt CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Nut (Qty: 4) Tighten 11 N.m (97 lb in)
3	Front Side Door Window Regulator Procedure Transfer components as necessary.
