Windshield Wiper Transmission Replacement

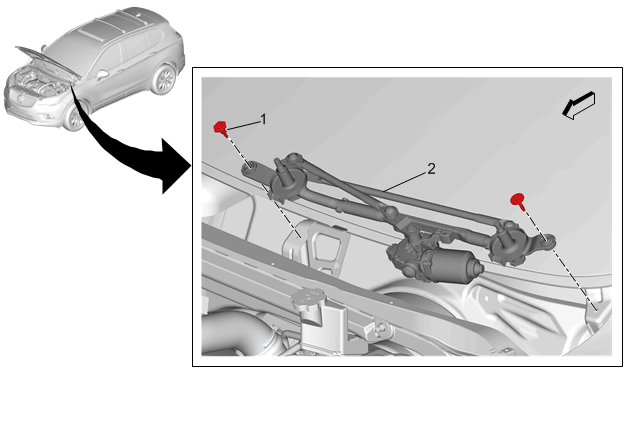

Fig 1: Windshield Wiper Transmission

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood assembly. Air Inlet Grille Panel Replacement
1	Windshield Wiper Transmission Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper Transmission Procedure Lift the wiper transmission from the plenum brackets. Disconnect the electrical connector from the windshield wiper motor. Remove the windshield wiper transmission from the plenum.

Callout

Component Name

Preliminary Procedure

Windshield Wiper Transmission Bolt (Qty: 2)

CAUTION:

Tighten
8 N.m (71 lb in)

Windshield Wiper Transmission

Procedure
