Oil Pan and Components
WARNING: This page is about a different variant/trim than selected.

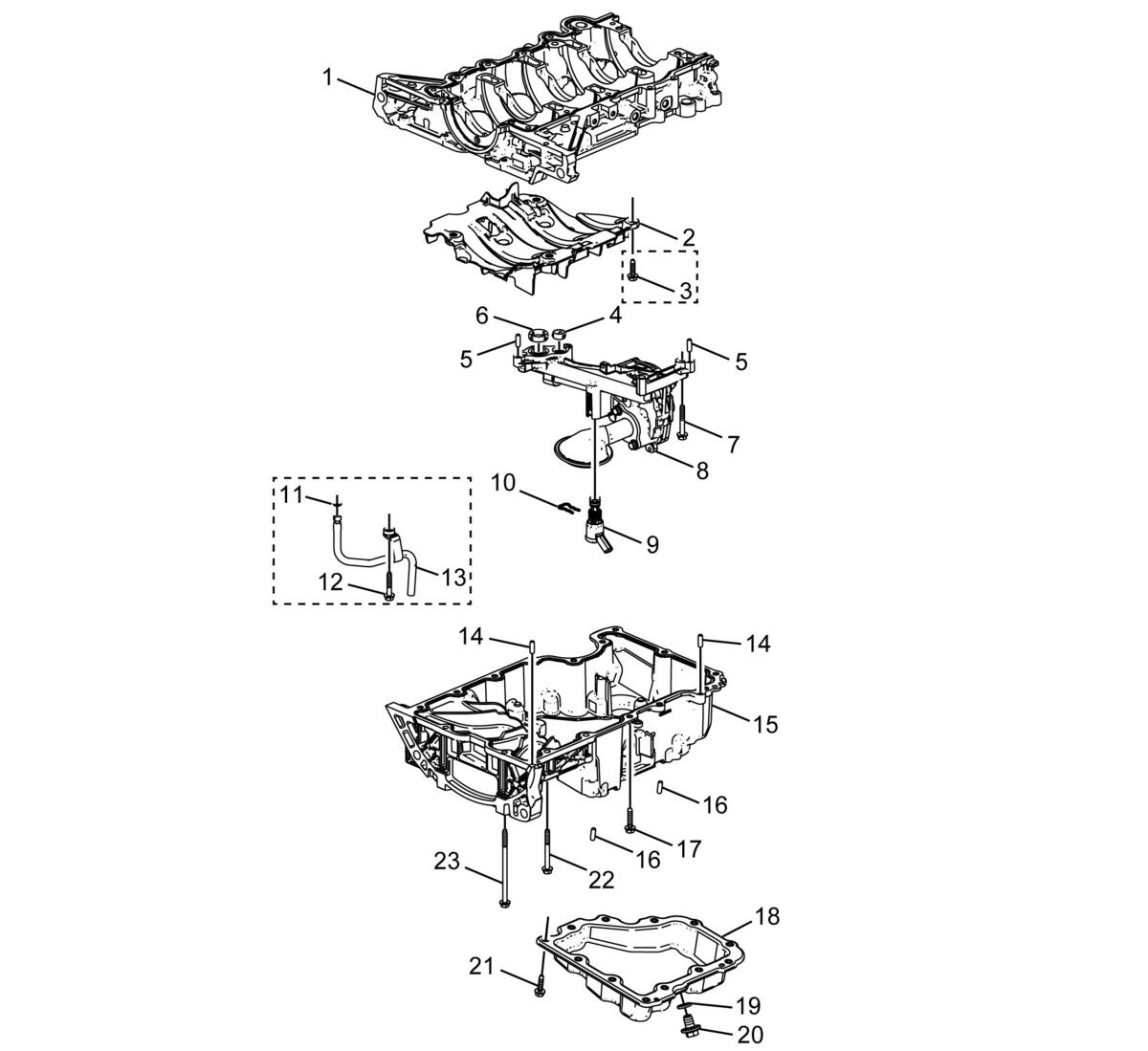

| Callout | Component Name |
|---|---|
| 1 | Lower Crankcase |
| 2 | Crankshaft Oil Deflector |
| 3 | Crankshaft Oil Deflector Bolts (Qty: 3) |
| 4 | Oil Pump Gasket |
| 5 | Oil Pump Assembly Locating Pin |
| 6 | Oil Pump Gasket |
| 7 | Oil Pump Assembly Bolt (Qty: 4) |
| 8 | Oil Pump Assembly |
| 9 | Oil Pump Flow Control Solenoid Valve |
| 10 | Oil Pump Flow Control Solenoid Valve Retainer |
| 11 | Positive Crankcase Ventilation Oil Separator Drain Pipe O-ring |
| 12 | Positive Crankcase Ventilation Oil Separator Drain Pipe Bolt |
| 13 | Positive Crankcase Ventilation Oil Separator Drain Pipe |
| 14 | Upper Oil Pan Locating Pin (Qty: 2) |
| 15 | Upper Oil Pan Assembly |
| 16 | Lower Oil Pan Locating Pin (Qty: 2) |
| 17 | Upper Oil Pan Bolt (Qty: 12) |
| 18 | Lower Oil Pan |
| 19 | Oil Drain Plug O-ring |
| 20 | Oil Pan Drain Plug |
