Turbocharger Wastegate Regulator Solenoid Valve Replacement

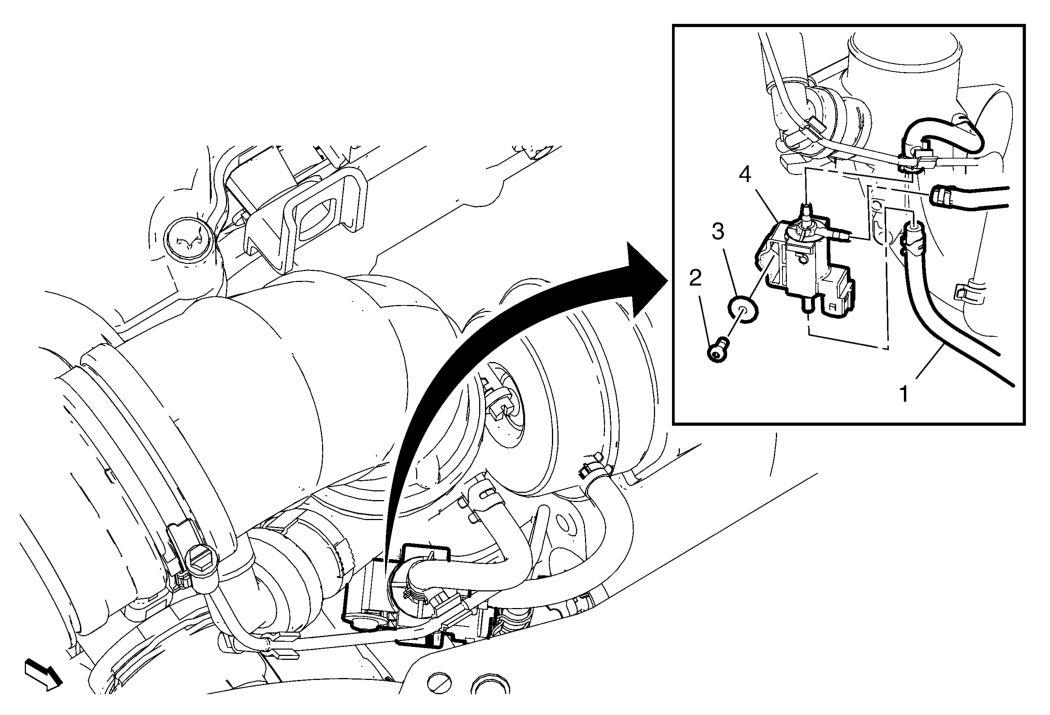

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve
GM2658484Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Cooling System Draining and Filling .
  2. Radiator Outlet Hose Replacement (LUV)
  3. Disconnect the electrical connector.
1 Turbocharger Wastegate Regulator Solenoid Valve Vacuum Hose (Qty: 3)
2 Turbocharger Wastegate Regulator Solenoid Valve Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
3 Turbocharger Wastegate Regulator Solenoid Valve Bolt Washer
4 Turbocharger Wastegate Regulator Solenoid Valve
