Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement (Chevrolet)

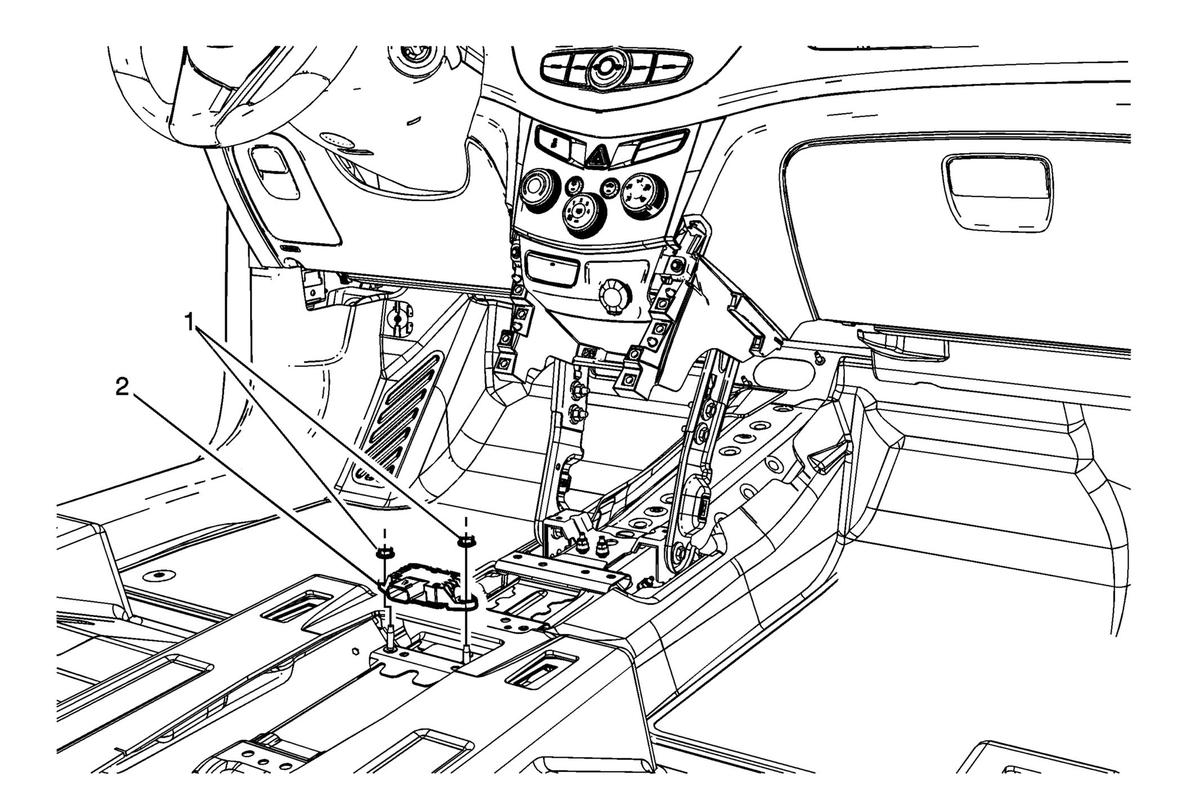

Fig 1: Vehicle Yaw Sensor with Vehicle Lateral Accelerometer (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement (Chevrolet) .
1	Vehicle Yaw Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Procedure Disconnect the electrical connector. After the installation is complete, configure the yaw sensor. Refer to Service Programming System (SPS) . After the installation is complete, perform the Vehicle Yaw Sensor Learn .

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement (Chevrolet) .

Vehicle Yaw Sensor Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer

Procedure

Disconnect the electrical connector.
After the installation is complete, configure the yaw sensor. Refer to Service Programming System (SPS) .
After the installation is complete, perform the Vehicle Yaw Sensor Learn .
