Rear Side Door Window Outer Sealing Strip Replacement

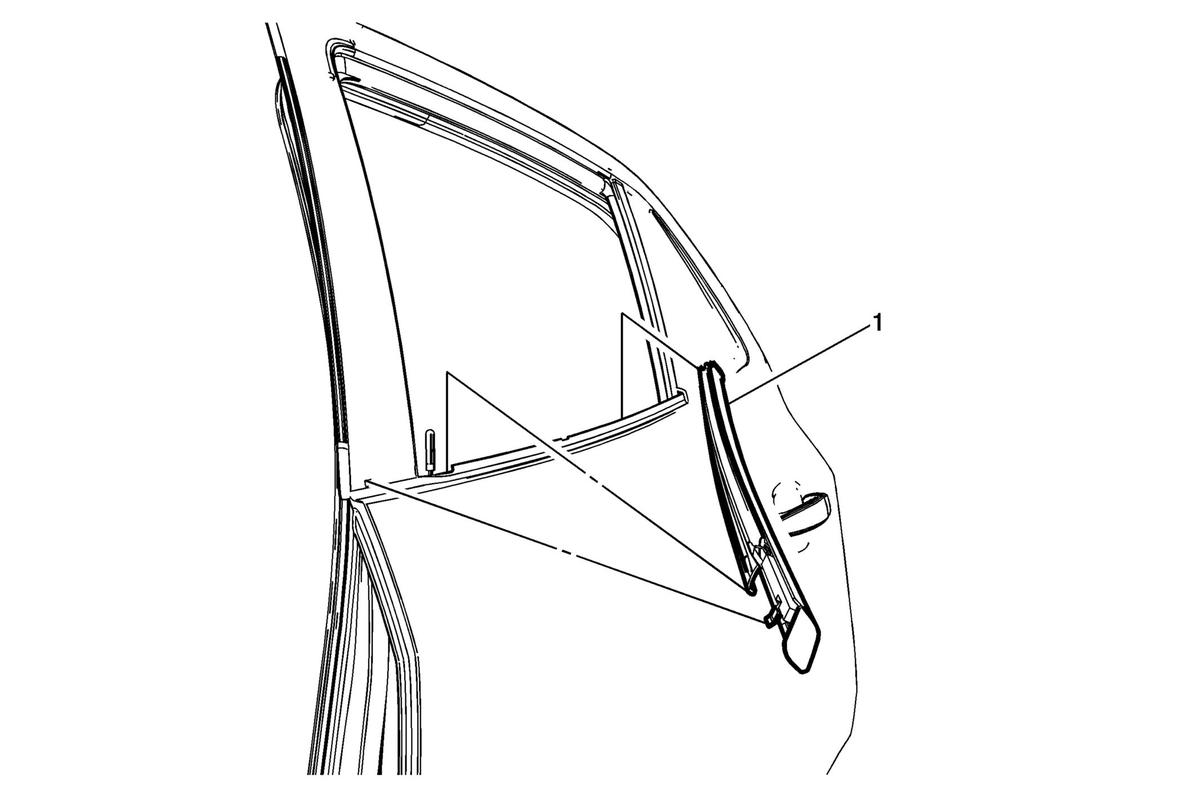

Fig 1: Rear Side Door Window Outer Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Outer Sealing Strip Procedure Use the appropriate tool, lift the front edge of the sealing strip and pull upward and away from the door flange. Press firmly to insert the rear side door window sealing strip back on the door flange. Inspect the door window for proper operation.

Callout

Component Name

Rear Side Door Window Outer Sealing Strip

Procedure

Use the appropriate tool, lift the front edge of the sealing strip and pull upward and away from the door flange.
Press firmly to insert the rear side door window sealing strip back on the door flange.
Inspect the door window for proper operation.
