Front Side Door Window Switch Replacement (Passenger Side, Chevrolet)

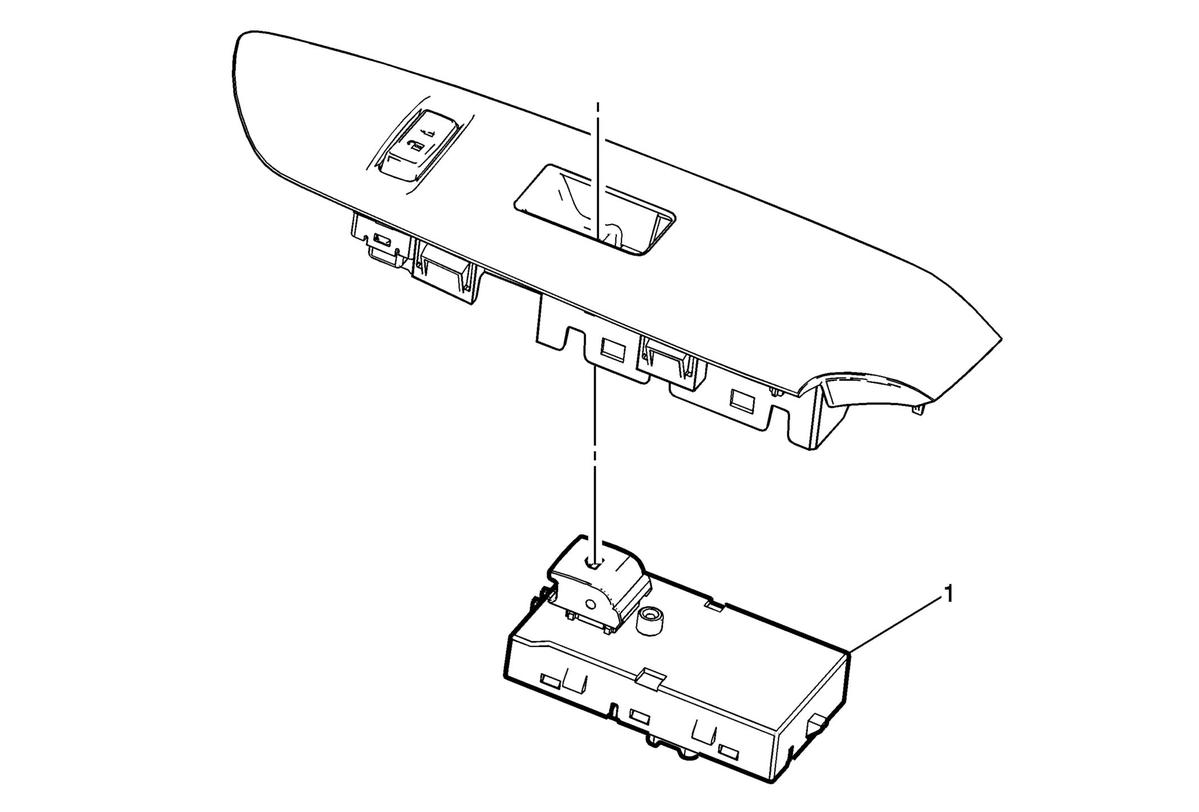

Fig 1: Front Side Door Window Switch (Passenger Side, Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate - passenger side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Chevrolet) .
1	Front Side Door Window Switch Assembly - Passenger Side Procedure Release tabs on switch to remove from front side door armrest switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate - passenger side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Chevrolet) .

Front Side Door Window Switch Assembly - Passenger Side

Procedure

Release tabs on switch to remove from front side door armrest switch mount plate.
Refer to Control Module References for programming and set up procedures.
