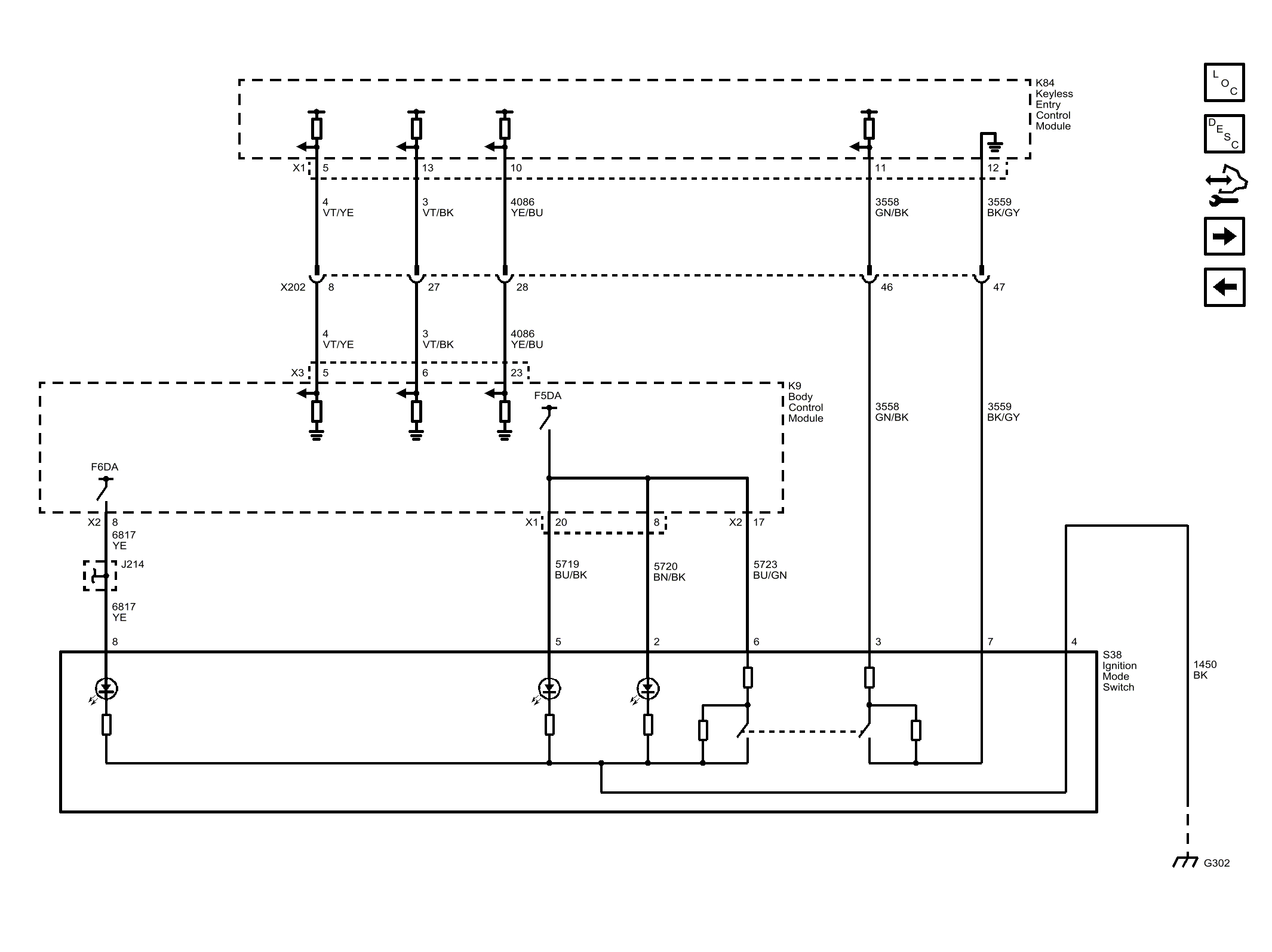

Home >> Buick >> 2017 >> Encore Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics (Chevrolet) >> Keyless Start (Chevrolet with BTM)
