Radio Replacement (Chevrolet with IOA)

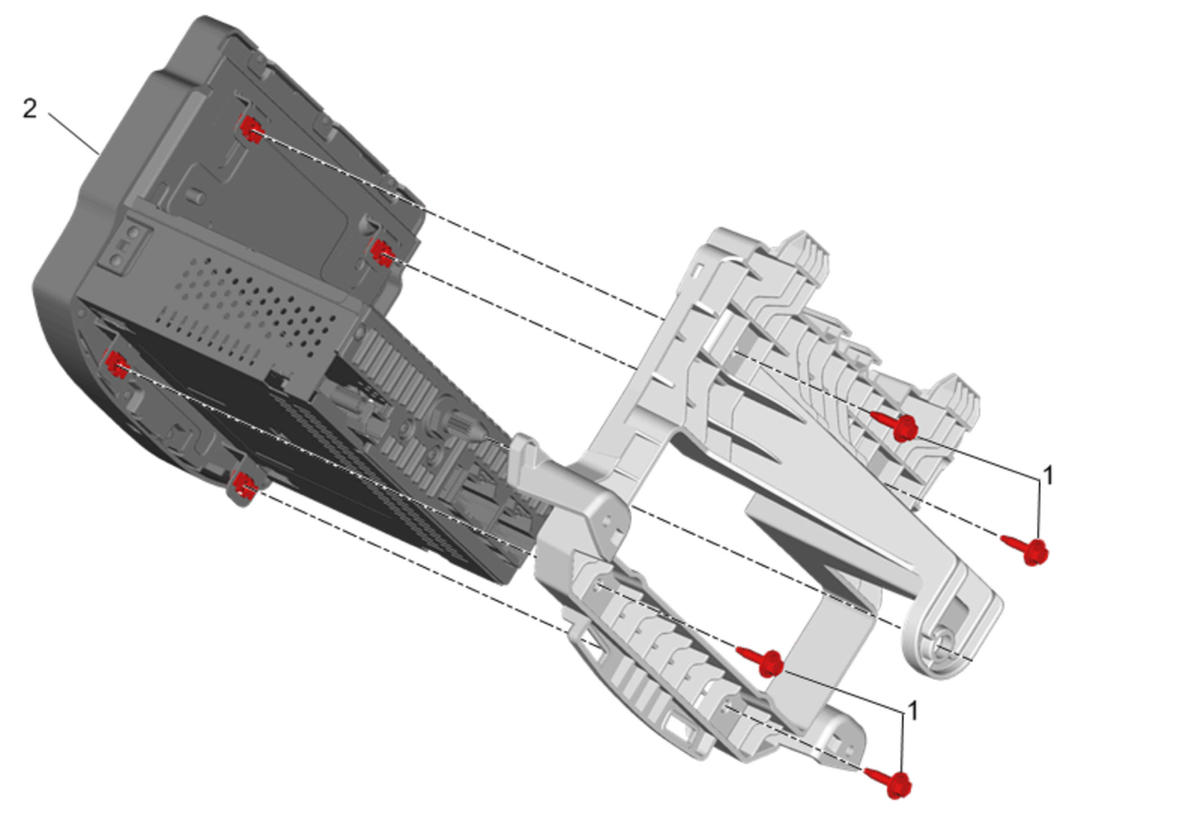

Fig 1: Radio (Trax with IOA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Radio Bracket. Refer to Radio Bracket Replacement (Chevrolet)
1	Radio Control Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Radio Procedure  Perform the necessary programming and setup procedure: Control Module References
