Installation Procedure

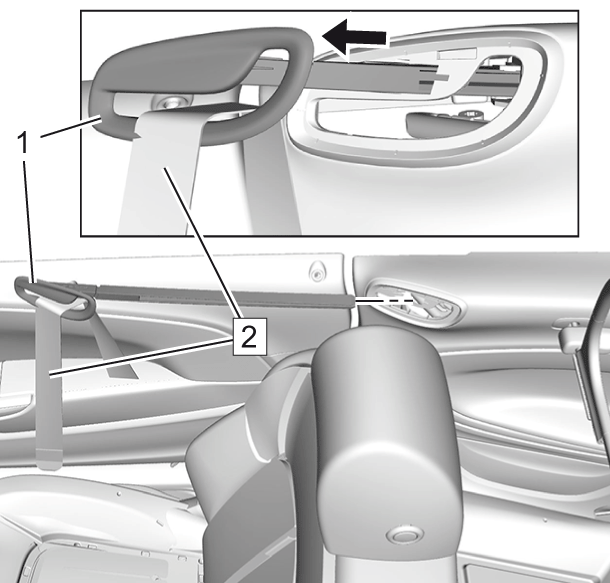

  1. GM4377201

    Pull the seat belt (2) through the seat belt reach assist arm.

  2. Slightly push the seat belt reach assist arm (1) to the quarter upper trim panel as shown in the graphic.
  3. Install the front seat belt to the front seat belt anchor plate. Refer to Front Seat Belt Anchor Plate Tensioner Replacement .
