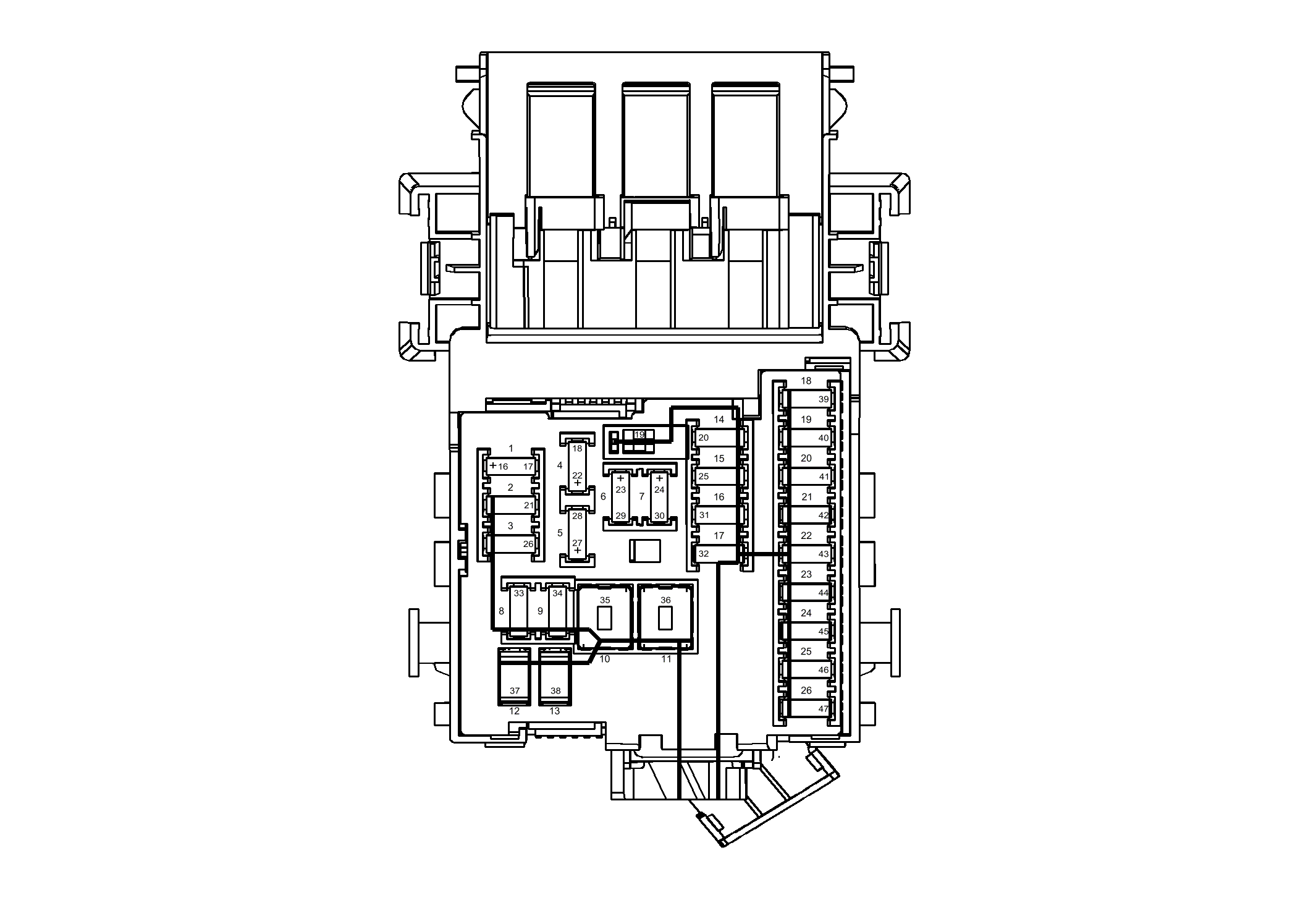

| Fuses |
| 1 |
- |
F1DA |
10A |
- A22 Radio Control (UAG, UDK or UFD)
- P17 Info Display Module (UAG, UDK or UFD)
|
| 2 |
- |
F2DA |
10A |
- K9 Body Control Module: A3L Sunshade - Left (D6I)
- A3R Sunshade - Right (D6I)
- E27 Instrument Panel
- E37F Dome/Reading Lamps - Front
- E4AD Park/Daytime Running Lamp - Right
- E4LR Turn Signal Lamp - Left Rear
- M7 Transmission Shift Lock Control Solenoid Actuator (MM1)
|
| 3 |
- |
F3DA |
10A |
- K9 Body Control Module: KR114 Door Dead Lock Relay (AF8)
- KR132 Fuel Door Lock Relay
- KR2 Headlamp Washer Pump Relay
- KR6 Rear Window Washer Pump Relay
- KR95A Liftgate Unlatch Relay
- S108 Tour Mode Switch (URC)
- S130D Seat Venting Switch - Driver (KU2)
- S130P Seat Venting Switch - Passenger (KU2)
- S48D Multifunction Switch 2 - Instrument Panel
|
| 4 |
- |
F4DA |
20A |
- A11 Radio (U77, U91 or US3)
|
| 5 |
- |
F5DA |
7.5A |
- A12 Digital Radio Receiver Control Module (U4D)
- K82 Mobile Telephone Control Module (UPH, UPI or UPJ)
- P5 Chime Alarm Control Module (UL5 or KRP)
- P16 Instrument Cluster
- T11 Multimedia Player Interface Module (KTA or KTB)
- X20 Memory Card Receptacle (TTX+NV)
|
| 6 |
- |
F6DA |
20A |
- X80G Accessory Power Receptacle - Instrument Panel (without DT4)
- E32 Cigarette Lighter Receptacle (with DT4)
|
| 7 |
- |
F7DA |
20A |
- X80H Accessory Power Receptacle - Center Console
|
| 8 |
- |
F8DA |
20A |
- K9 Body Control Module: E4AC Park/Daytime Running Lamp - Left
- E4AD Park/Daytime Running Lamp - Right
- E4G Headlamp - Left Low Beam (T4A)
- E4LF Turn Signal Lamp - Left Front
- E4Y Turn Signal Repeater Lamp - Left
- E5L Stop Lamp - Left
|
| 9 |
- |
F9DA |
20A |
- K9 Body Control Module: E4AC Park/Daytime Running Lamp
- E4AD Park/Daytime Running Lamp - Right
- E4H Headlamp - Right Low Beam (T4A)
- E4RF Tun Signal Lamp - Right Front
- E4Z Turn Signal Repeater Lamp - Right
- E5R Stop Lamp - Right
- E8S Rear Compartment Courtesy Lamp
|
| 10 |
- |
F10DA |
30A |
- K9 Body Control Module: A23D Door Latch Assembly - Driver
- A23P Door Latch Assembly - Passenger
- KR114 Door Dead Relay (AF8)
- KR132 Fuel Door Lock Relay (-AF8)
- M97 Fuel Door Lock Actuator
|
| 11 |
- |
F11DA |
40A |
- K8 Blower Motor Control Module
|
| 12 |
- |
F12DA Circuit Breaker |
25A |
- S64D Seat Adjuster Switch - Driver
|
| 13 |
- |
F13DA Circuit Breaker |
25A |
- S64P Seat Adjuster Switch - Passenger
|
| 14 |
- |
F14DA |
7.5A |
|
| 15 |
- |
F15DA |
10A |
- K36 Inflatable Restraint Sensing and Diagnostic Module
|
| 16 |
- |
F16DA |
- |
|
| 17 |
- |
F17DA |
10A |
- A26 HVAC Control
- K33 HVAC Control Module
|
| 18 |
- |
F18DA |
30A |
- F1DA
- F4DA or F5DA without KL9
|
| 19 |
- |
F19DA |
15A |
- K9 Body Control Module: A10 Inside Rearview Mirror (TQ5)
- B87 Rearview Camera (UVC)
- E4RR Turn Signal Lamp - Right Rear
- E5A Backup Lamp - Left
- E5B Backup Lamp - Right
- E29LR Fog Lamp - Left Rear
- E29RR Fog Lamp - Right Rear
- E32 Cigarette Lighter Receptacle (DT4)
- E37F Dome/Reading Lamps - Front (C95)
- KR76 Retained Accessory Power Relay (MM1 or MM3)
- P2 Transmission Shift Lever Position Indicator (MM1), S3 Transmission Shift Lever (MM1), S30 Headlamp Switch, S43 Theft Deterrent Disable Switch (UTU), S48A Multifunction Switch - Instrument Panel, S48C Multifunction Switch 1 - Instrument Panel (KL9 or FX3), S48D Multifunction Switch 2 - Instrument Panel (UD5, UD7, UDP, UDQ, UFL or UJC), S52 Outside Rearview Mirror Switch (DWE or DWF), S70L Steering Wheel Controls Switch - Left, S70R Steering Wheel Controls Switch - Right, S79P Window Switch - Passenger, S91 Park Brake Control Switch (J71), S108 Tour Mode Switch (URC or F45), S109 Sport Mode Switch (URC or F45), S134 Folding Top/Global Window Switch, X85 Steering Wheel Air Bag Coil (K33, K34, UC3, UFL or W1Y)
|
| 20 |
- |
F20DA |
- |
|
| 21 |
- |
F21DA |
5A |
- B165 Content Theft Deterrent Sensor Module (UTR or UTU), P25 Power Sounder Content Theft Deterrent Alarm Module (UTR or UTU)
|
| 22 |
- |
F22DA |
5A |
|
| 23 |
- |
F23DA |
10A |
- K9 Body Control Module: E1D Accent Lamp - Driver Door (C9B)
- E1P Accent Lamp - Passenger Door (C9B)
- E1V Accent Lamp - Shift Lever (C9D)
- E6 Center High Mounted Stop Lamp
- E7L License Plate Lamp - Left
- E7R License Plate Lamp - Right
- K20 Engine Control Module (LBS, LBY, LUJ, LVP or LWC without MM1)
- K23 Folding Top Control Module
- K71 Transmission Control Module (MDK)
- KR11 Windshield Washer Pump Relay
- KR73 Ignition Main Relay
- Q8 Control Solenoid Valve Assembly (MH7)
- S48A Multifunction Switch - Instrument Panel
|
| 24 |
- |
F24DA |
10A |
- K9 Body Control Module: B10B Ambient Light/Sunload Sensor
- KR74 Ignition Run Relay
- M93 Key Capture Solenoid Actuator
|
| 25 |
- |
F25DA |
- |
|
| 26 |
- |
F26DA |
- |
|
