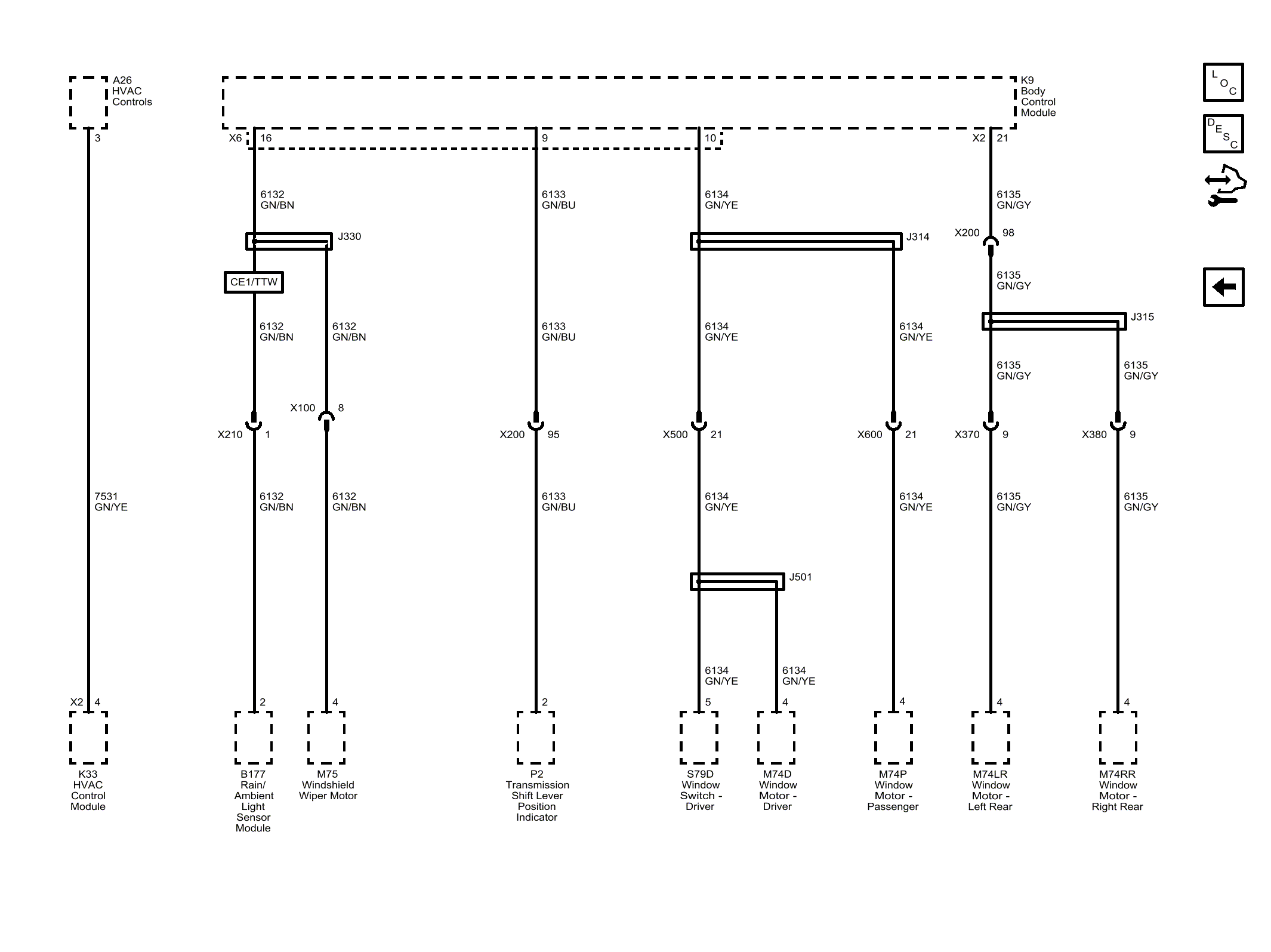

Local Interconnect Network (LIN) Bus 1, 2, 3, 4, and 9

GM4890325

Courtesy of GENERAL MOTORS COMPANY
