Home >> Buick >> 2017 >> Cascada Base >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic and Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed Chassis CAN

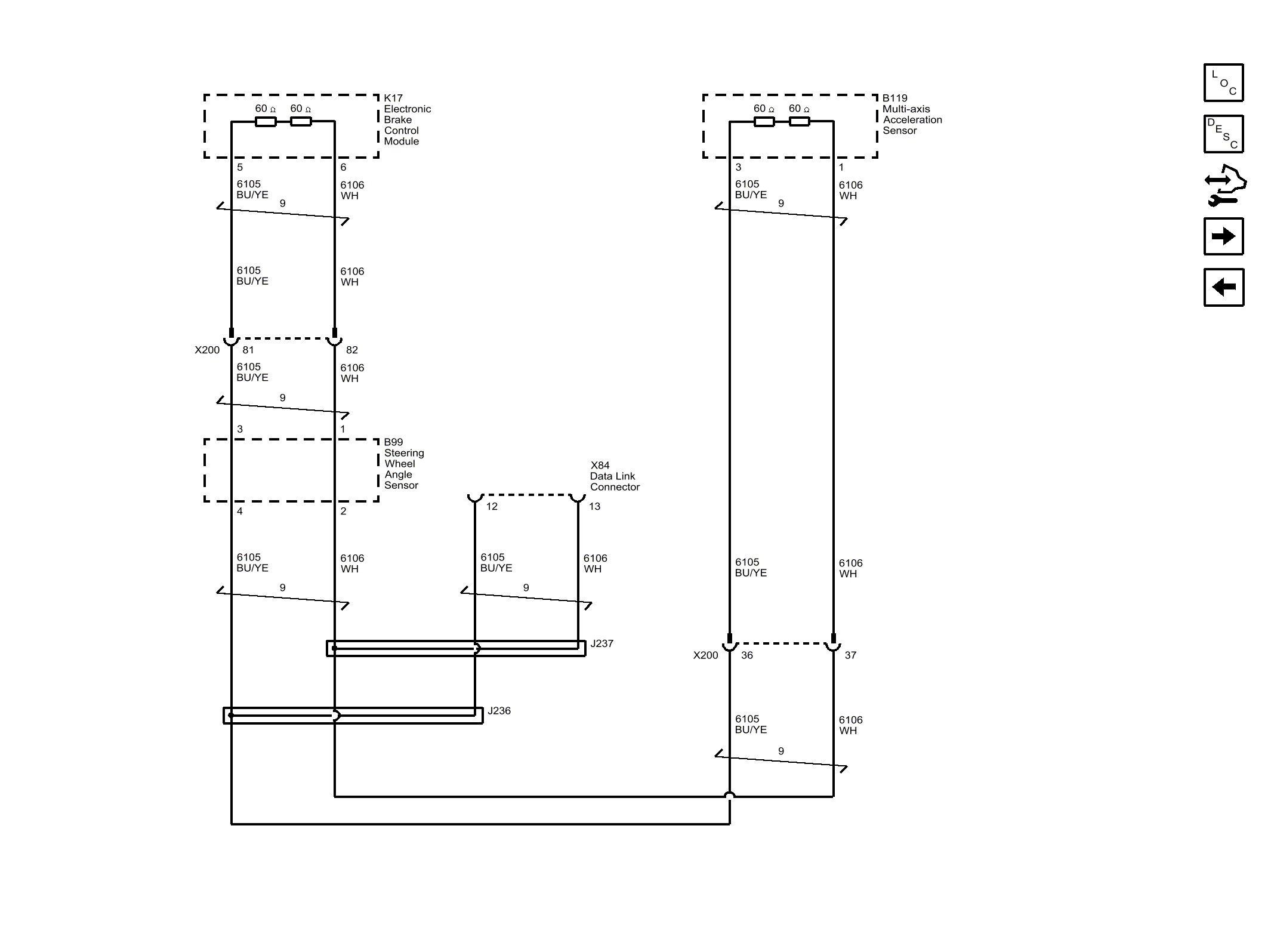

High Speed Chassis CAN

GM4890200Courtesy of GENERAL MOTORS COMPANY
