Quarter Window Inner Belt Sealing Strip Replacement

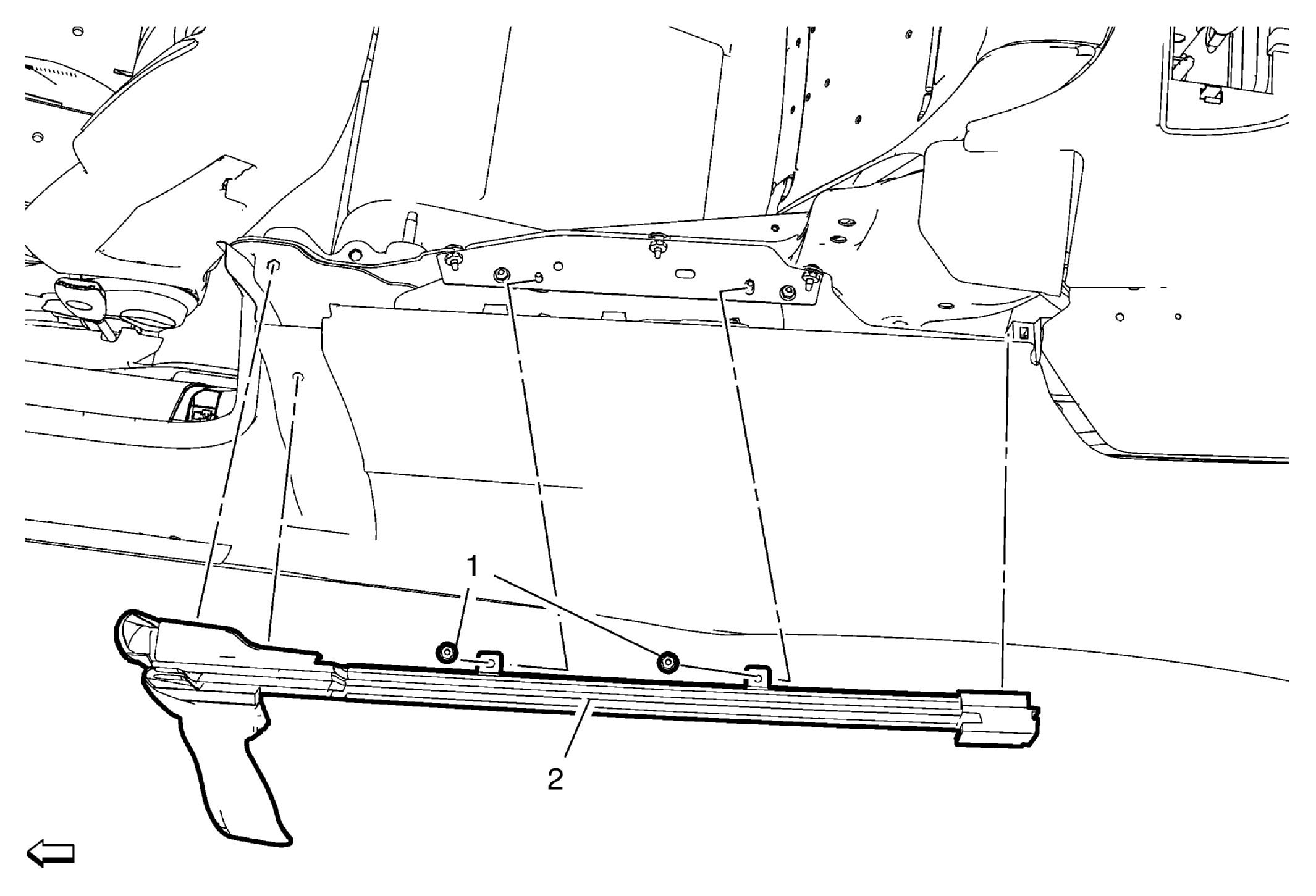

GM2966353
Callout Component Name
Preliminary Procedure
Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .
1 Quarter Window Inner Belt Sealing Strip Nut
CAUTION:

Refer to Fastener Caution .
2 Quarter Window Inner Belt Sealing Strip
Procedure
Unlock the 2 retaining tabs.
