Charge Air Bypass Valve Replacement

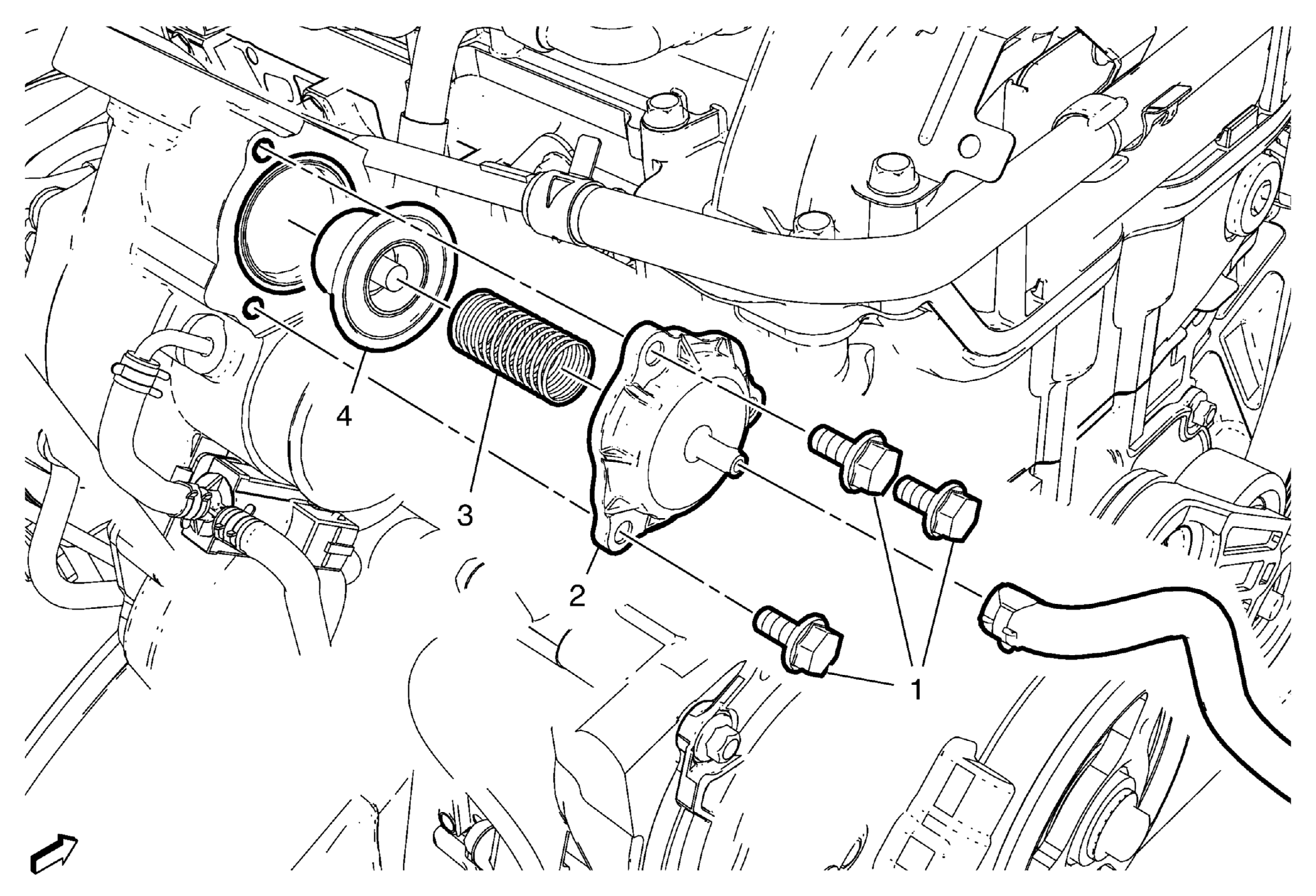

Fig 1: Charge Air Bypass Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Charge Air Bypass Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the vacuum hose. Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Valve
3	Charge Air Bypass Valve Diaphragm Spring
4	Charge Air Bypass Valve
