Camshaft Position Sensor Replacement - Exhaust

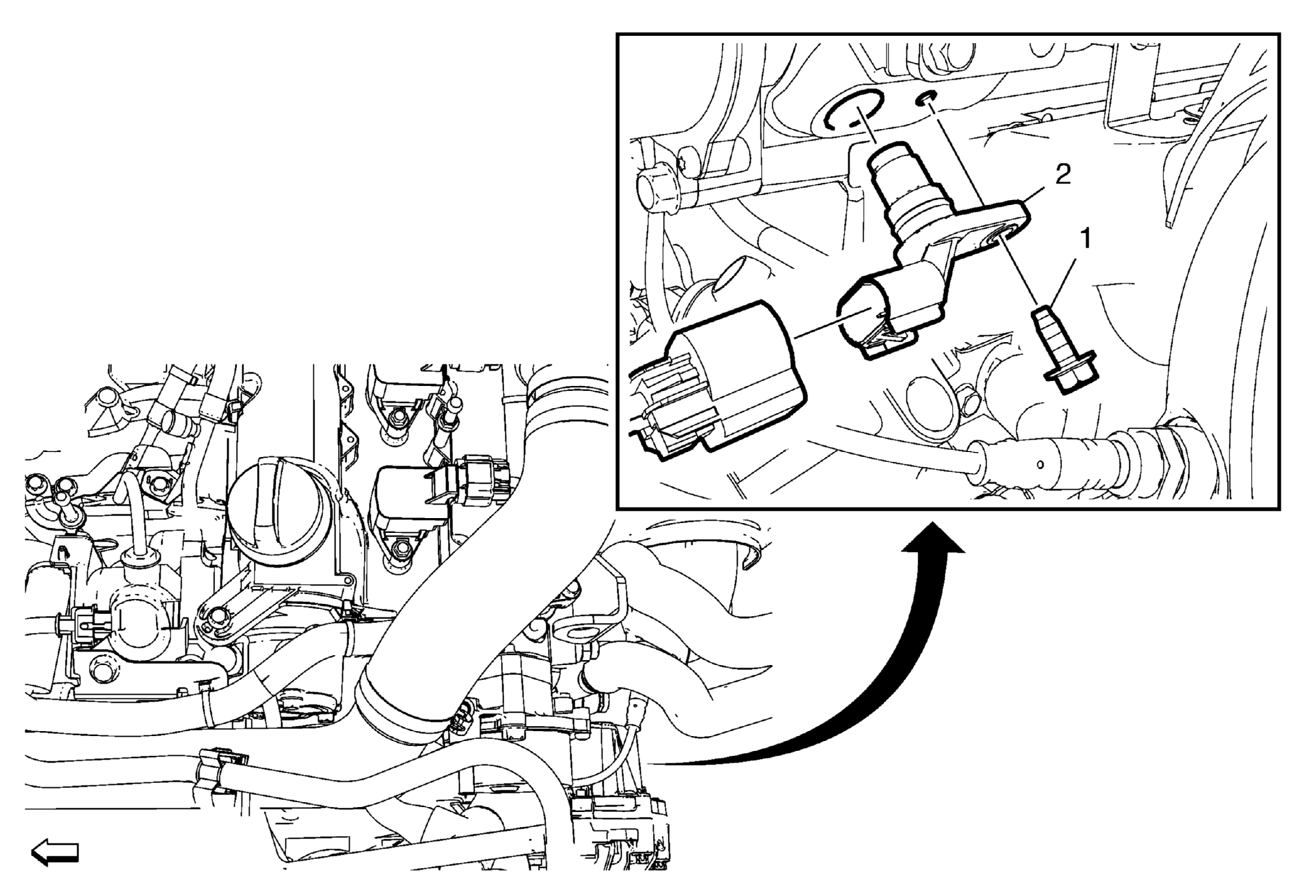

Fig 1: Exhaust Camshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Exhaust Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Exhaust Camshaft Position Sensor Procedure Disconnect the electrical connector. Use a NEW seal ring.

Callout

Component Name

Preliminary Procedure
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .

Exhaust Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Exhaust Camshaft Position Sensor

Procedure
