Air Cleaner Outlet Duct Replacement

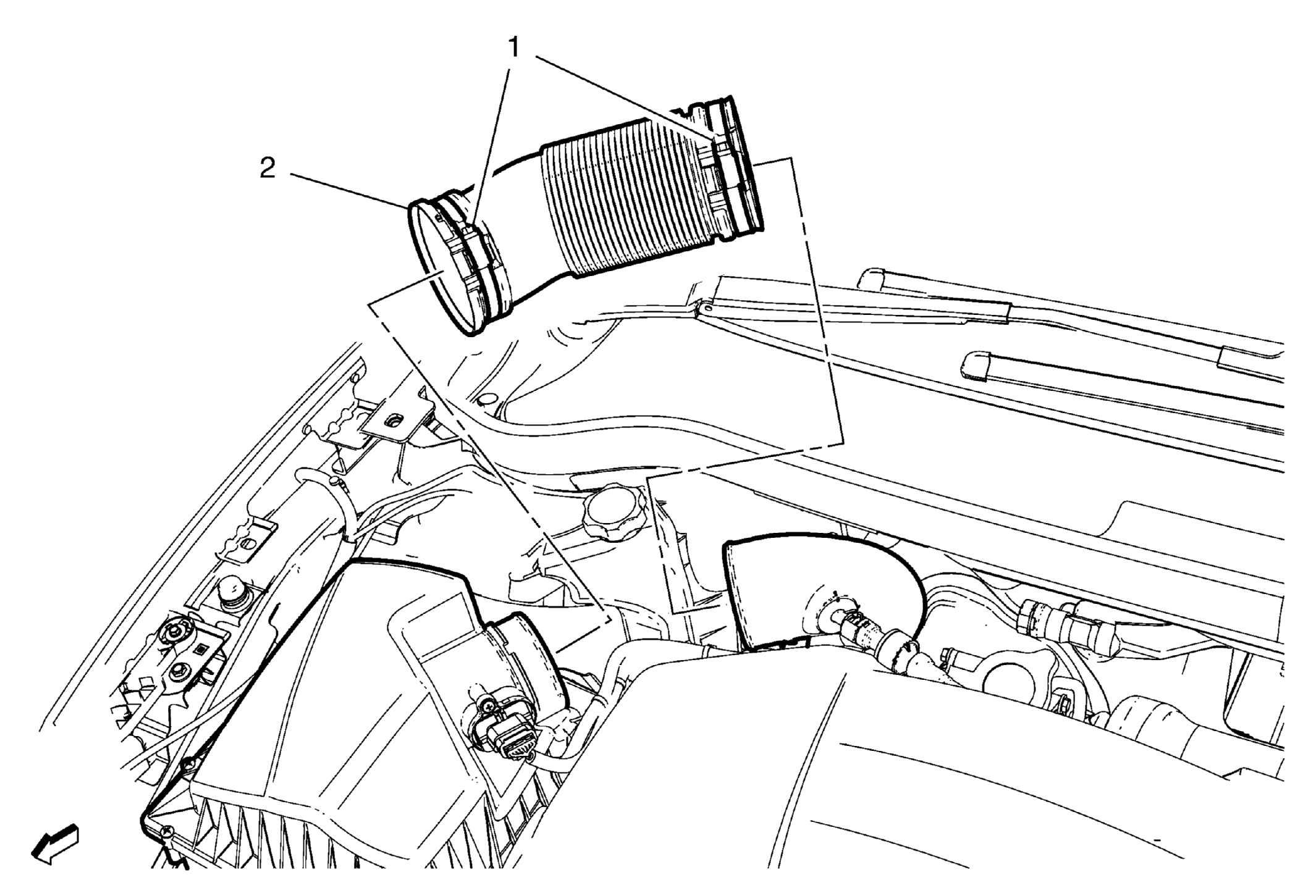

Fig 1: Air Cleaner Outlet Duct
GM2699465Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1 Air Cleaner Outlet Duct Clamp (Qty: 2)
NOTE:

Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2 Air Cleaner Outlet Duct
