Engine Compartment Components - Left

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3 X50D Fuse Block - Battery X4 X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X6 (LDK+MHK)X50D Fuse Block - Battery X6 (LUK)X50D Fuse Block - Battery X7
3: B162LF Vertical Body Acceleration Sensor - Left Front (F45) B162LF Vertical Body Acceleration Sensor - Left Front
4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 X50A Fuse Block - Underhood X4 X50A Fuse Block - Underhood X5
5: B18 Battery Current Sensor B18 Battery Current Sensor
6: C1 Battery C1 Battery C1 Battery C1 Battery C1 Battery X2 (-CZ2)C1 Battery X2 (Body Harness)C1 Battery X2 (CZ2)C1 Battery X2 (LDK+MHK)
7: K20 Engine Control Module (LAF) K20 Engine Control Module X1 (LAF/LUK/LFX)K20 Engine Control Module X1 (LDK)K20 Engine Control Module X1 (LDK)K20 Engine Control Module X1 (LFX)K20 Engine Control Module X2 (LAF/LUK/LFX)K20 Engine Control Module X2 (LDK)K20 Engine Control Module X2 (LDK)K20 Engine Control Module X2 (LFX)K20 Engine Control Module X3 (LAF)K20 Engine Control Module X3 (LDK)K20 Engine Control Module X3 (LFX)K20 Engine Control Module X3 (LUK)
8: Q5 Brake Pressure Modulator
9: K17 Electronic Brake Control Module K17 Electronic Brake Control Module
10: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch (CZ2)B20 Brake Fluid Level Switch (-CZ2)
11: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor (CZ2)B19B Brake Booster Vacuum Sensor (-CZ2)
12: B108 Air Quality Sensor (UEC) B108 Air Quality Sensor

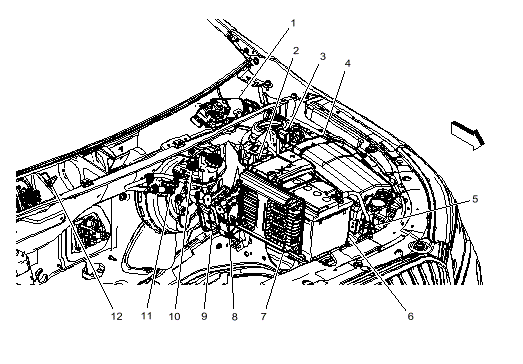

Fig 1: Engine Compartment Components - Left

Courtesy of GENERAL MOTORS COMPANY
