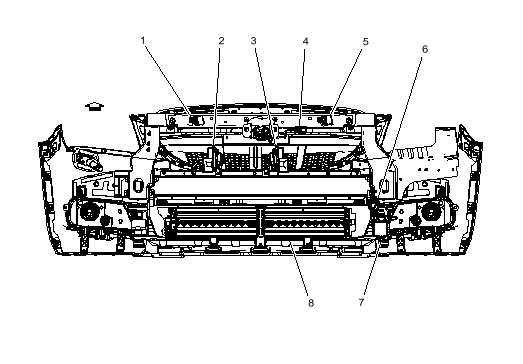

Engine Compartment Components - Front (CZ2)
Engine Compartment Components - Front (CZ2)
| Items |
|---|
| 1: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 2: P12A Horn - High Note (CZ2) P12A Horn - High Note |
| 3: P12B Horn - Low Note (CZ2) P12B Horn - Low Note |
| 4: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 5: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 6: KR14 Brake Booster Pump Motor Relay KR14 Brake Booster Pump Motor RelayKR14 Brake Booster Pump Motor Relay X2 |
| 7: M9 Brake Booster Pump Motor |
| 8: M96 Active Grille Air Shutter Actuator (VRI) M96 Active Grille Air Shutter Actuator |
