High Speed GMLAN Bus 1 (2 of 2)

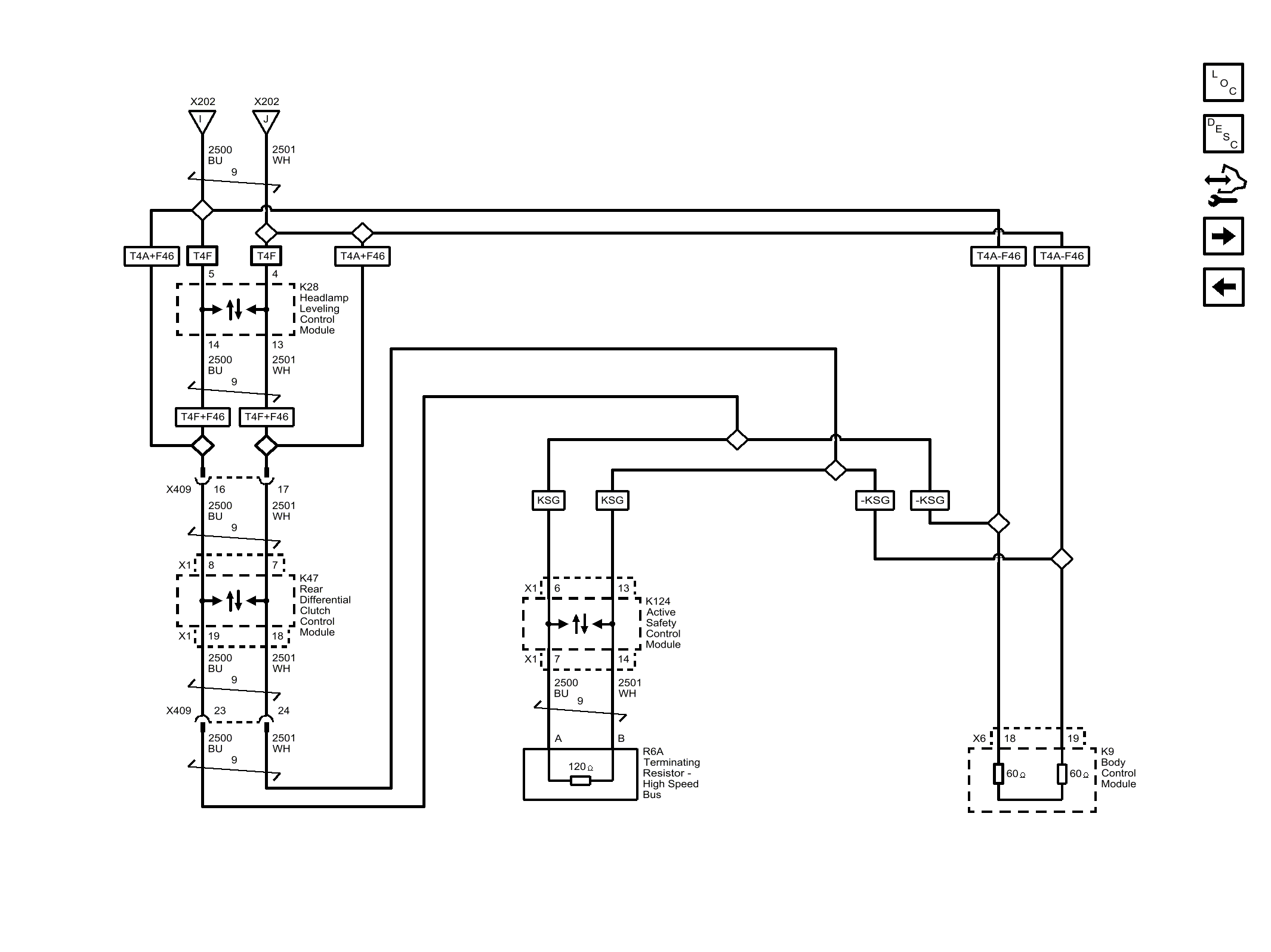

Fig 1: High Speed GMLAN Bus 1 (2 of 2)
GM3996780Courtesy of GENERAL MOTORS COMPANY
