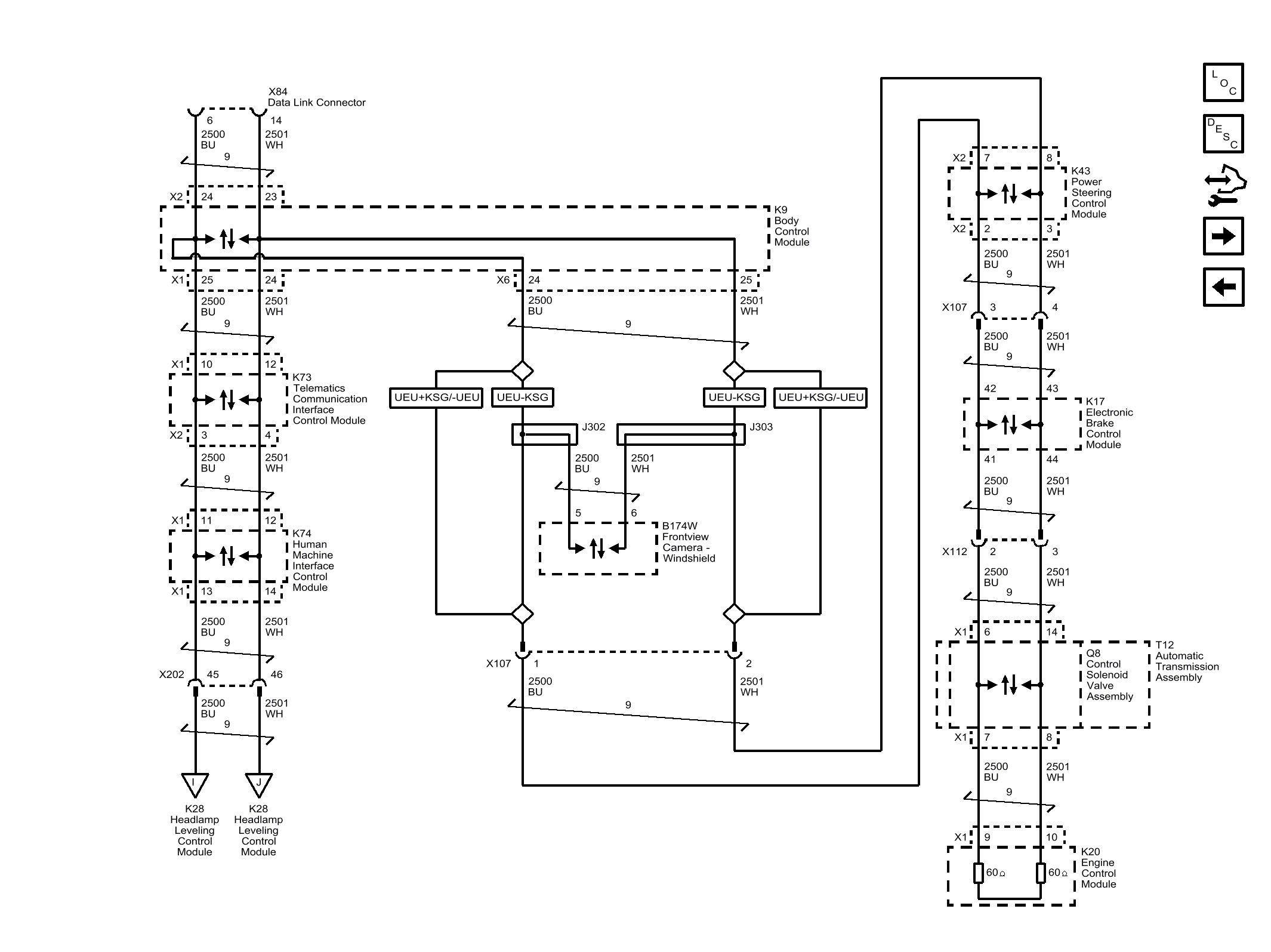

Home >> Buick >> 2016 >> Envision >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN Bus 1 (1 of 2)
