Fuel Sender Wiring Harness Replacement

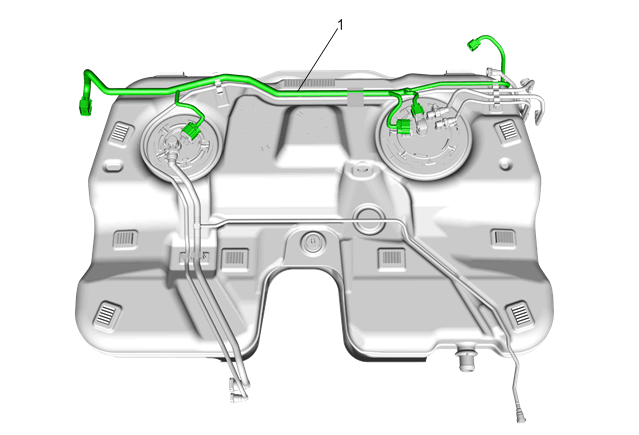

Fig 1: Fuel Sender Wiring Harness
GM3989949Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Fuel Tank Replacement
1 Fuel Sender Wiring Harness
Procedure
Disconnect the wiring harness from the fuel tank fuel pump module and the fuel sender assembly.
NOTE:

Typical wiring harness shown, depending on option content the harness may look different.
