Fuel Feed Pipe Replacement (Tank)

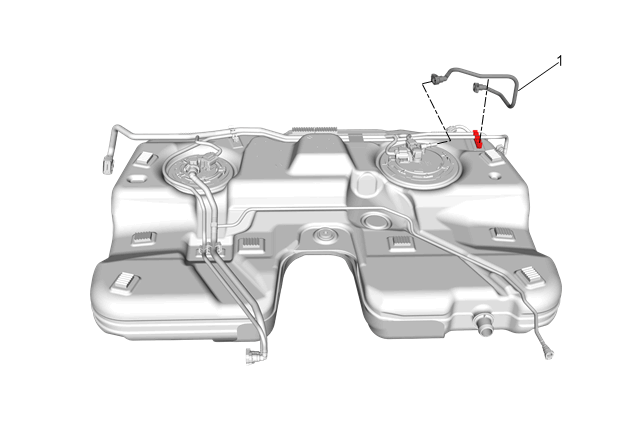

Fig 1: Fuel Feed Pipe (Tank)
GM3992432Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Fuel Tank Replacement
1 Fuel Feed Pipe
Procedure
Disconnect the quick disconnects and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service .
