Home >> Buick >> 2016 >> Envision >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Moveable Window Wiring Schematics >> Front Doors

Front Doors

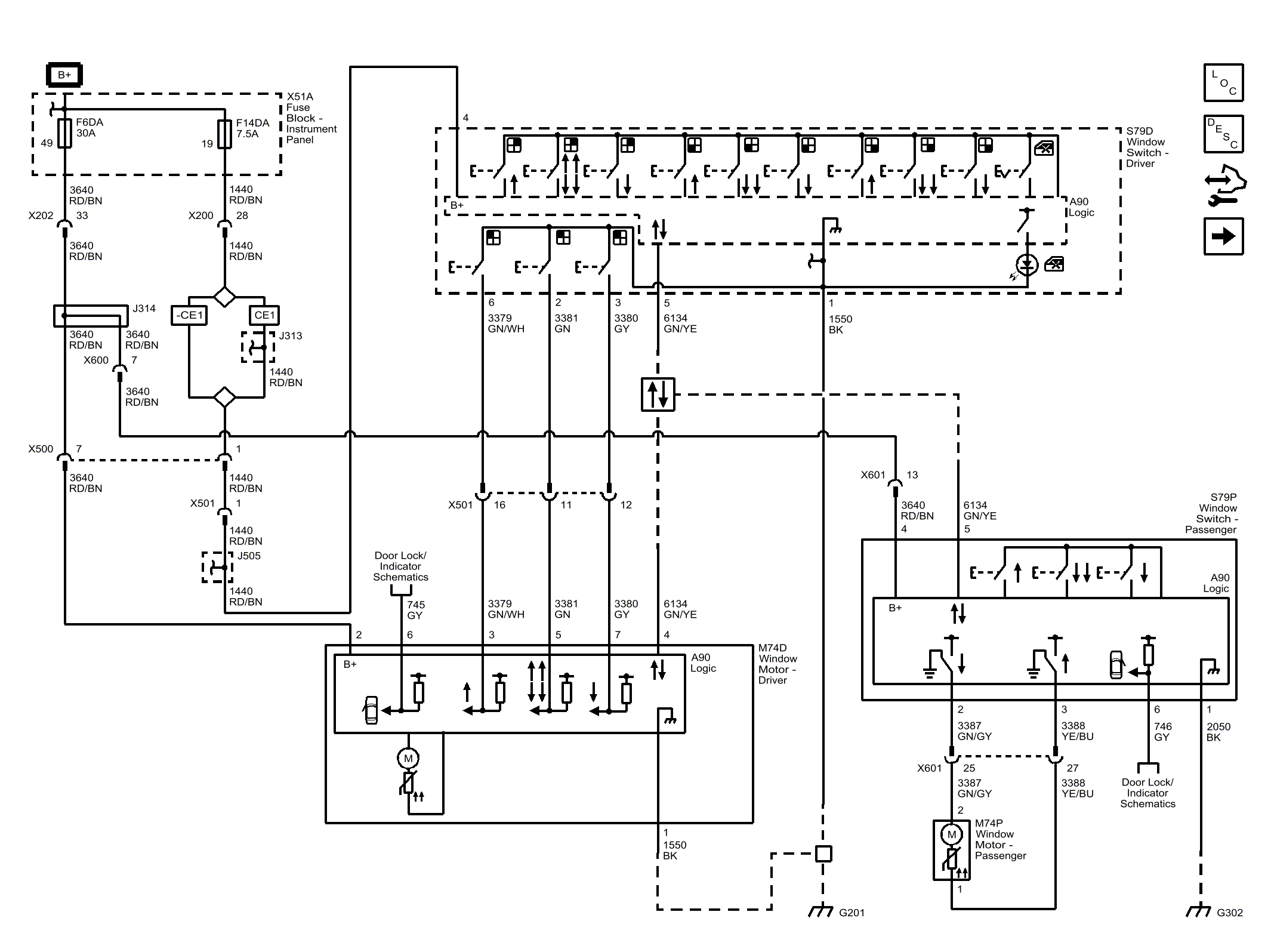

Fig 1: Front Doors

GM3997024

Courtesy of GENERAL MOTORS COMPANY
