Air Cleaner Inlet Duct Replacement

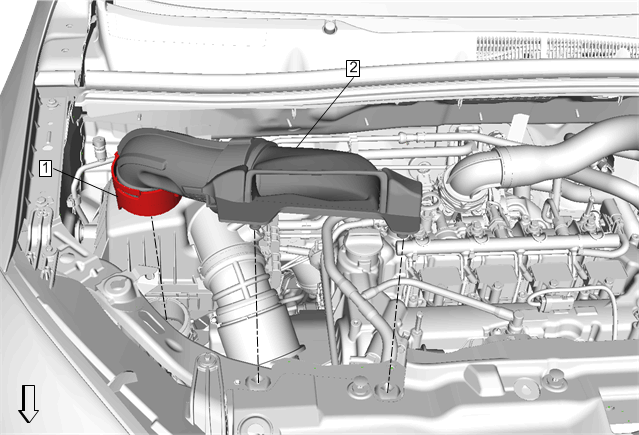

Fig 1: Air Cleaner Inlet Duct
GM4090705Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Inlet Duct Retainer
CAUTION:

Refer to Fastener Caution .


Procedure
Turn the air cleaner inlet duct retainer to release it from the air cleaner assembly.
2 Air Cleaner Inlet Duct
Procedure
Remove the air cleaner inlet duct by pulling upward to release the inlet duct from the rubber grommets and the air cleaner assembly.
