Hazard Warning Switch Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

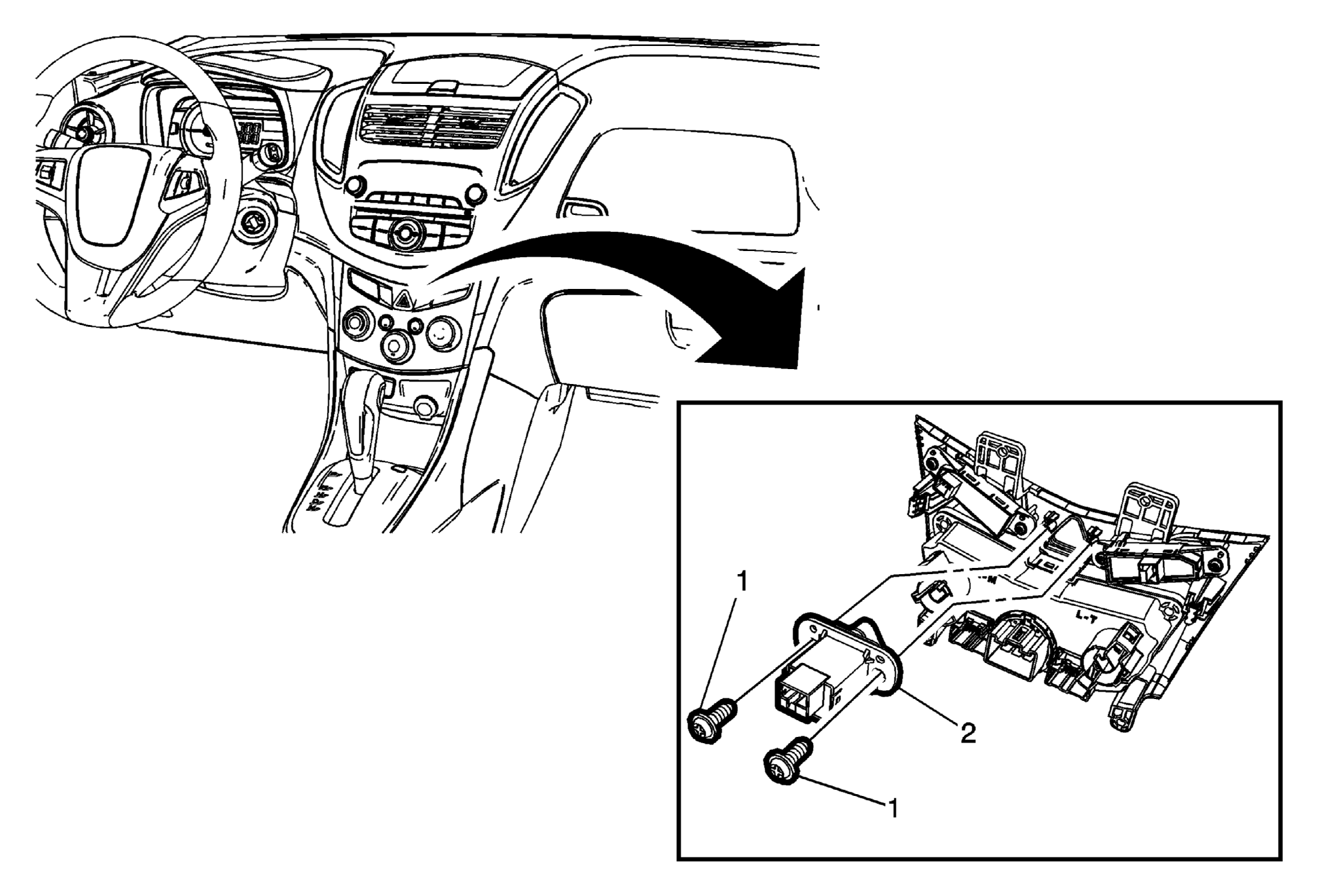

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control with Cable Control Replacement . |
|
| 1 | Hazard Warning Switch Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in) |
| 2 | Hazard Warning Switch |
