Charge Air Bypass Regulator Solenoid Valve Replacement

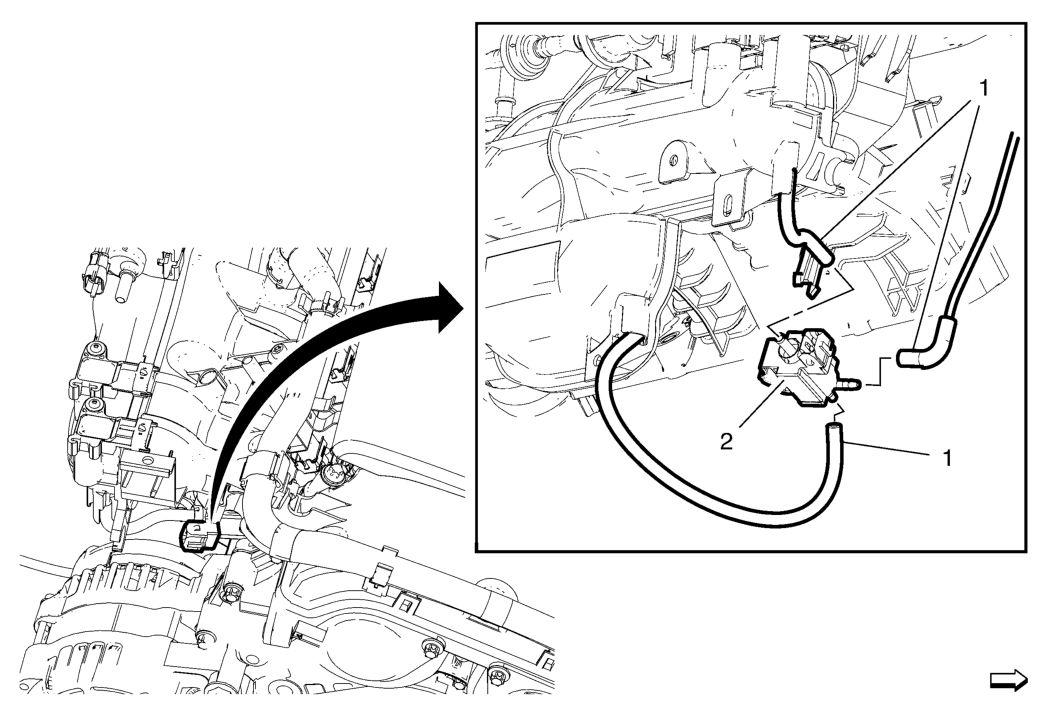

Fig 1: Charge Air Bypass Regulator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Charge Air Bypass Regulator Solenoid Valve Hose (Qty: 3) Procedure  Disconnect the electrical connector.
2	Charge Air Bypass Regulator Solenoid Valve
