Multifunction Power Supply Converter Replacement (MR5)

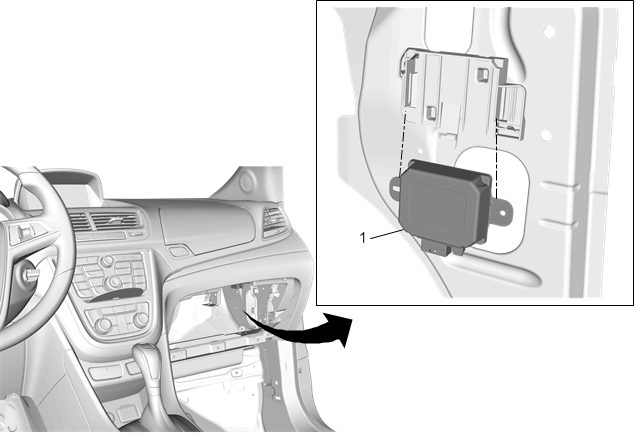

Fig 1: Multifunction Power Supply Converter (MR5)
GM3940386Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
  2. Instrument Panel Compartment Replacement
1 Multifunction Power Supply Converter

Procedure

  1. Disconnect the electrical connector.
  2. Slide converter downward out of bracket.
  3. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
