Blower Motor Control Module Replacement

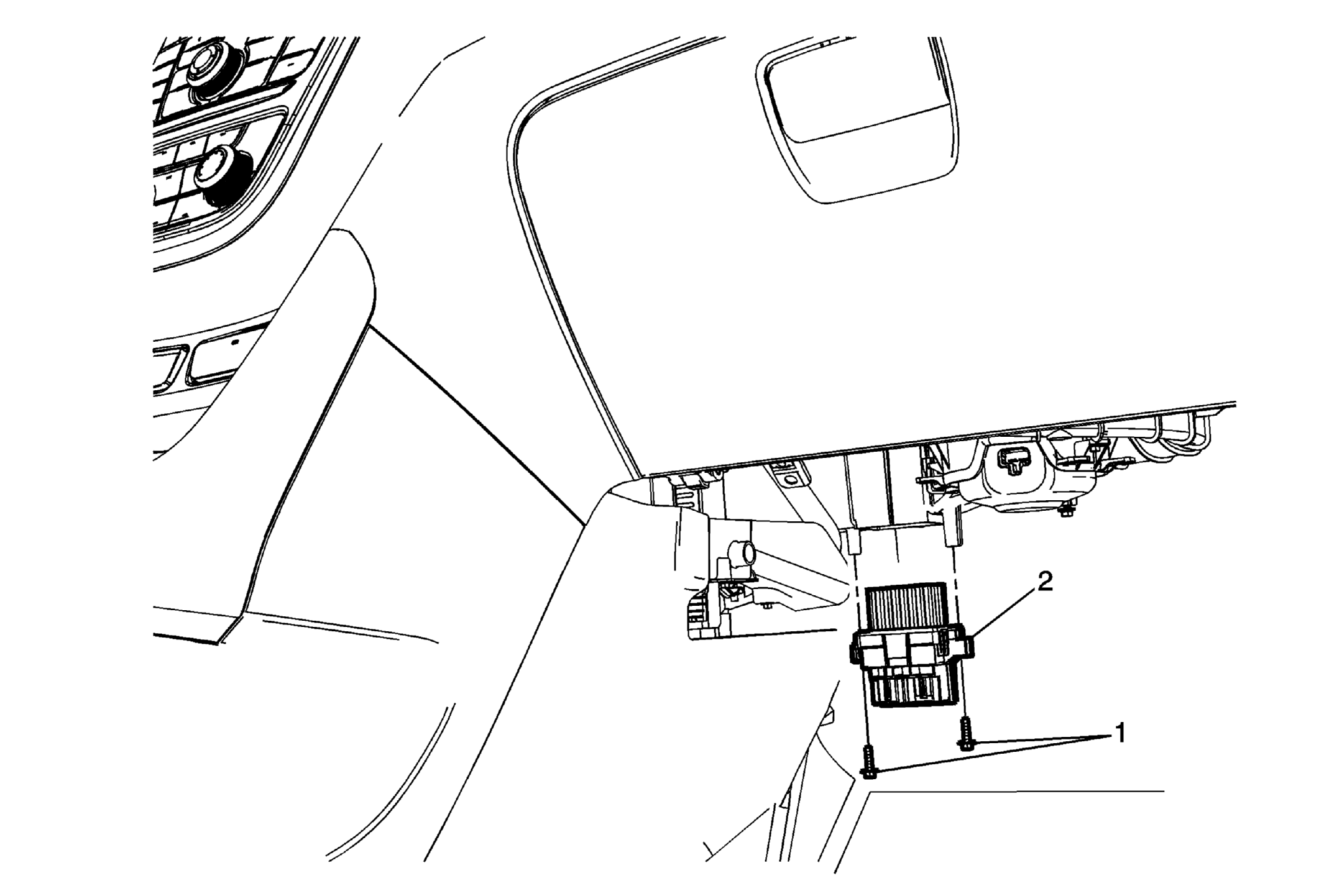

Fig 1: Blower Motor Control Module
GM2770726Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement .
1 Blower Motor Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Blower Motor Control Module
Procedure
Disconnect the blower motor control module connector.
