Rear of Engine Components (LCV)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

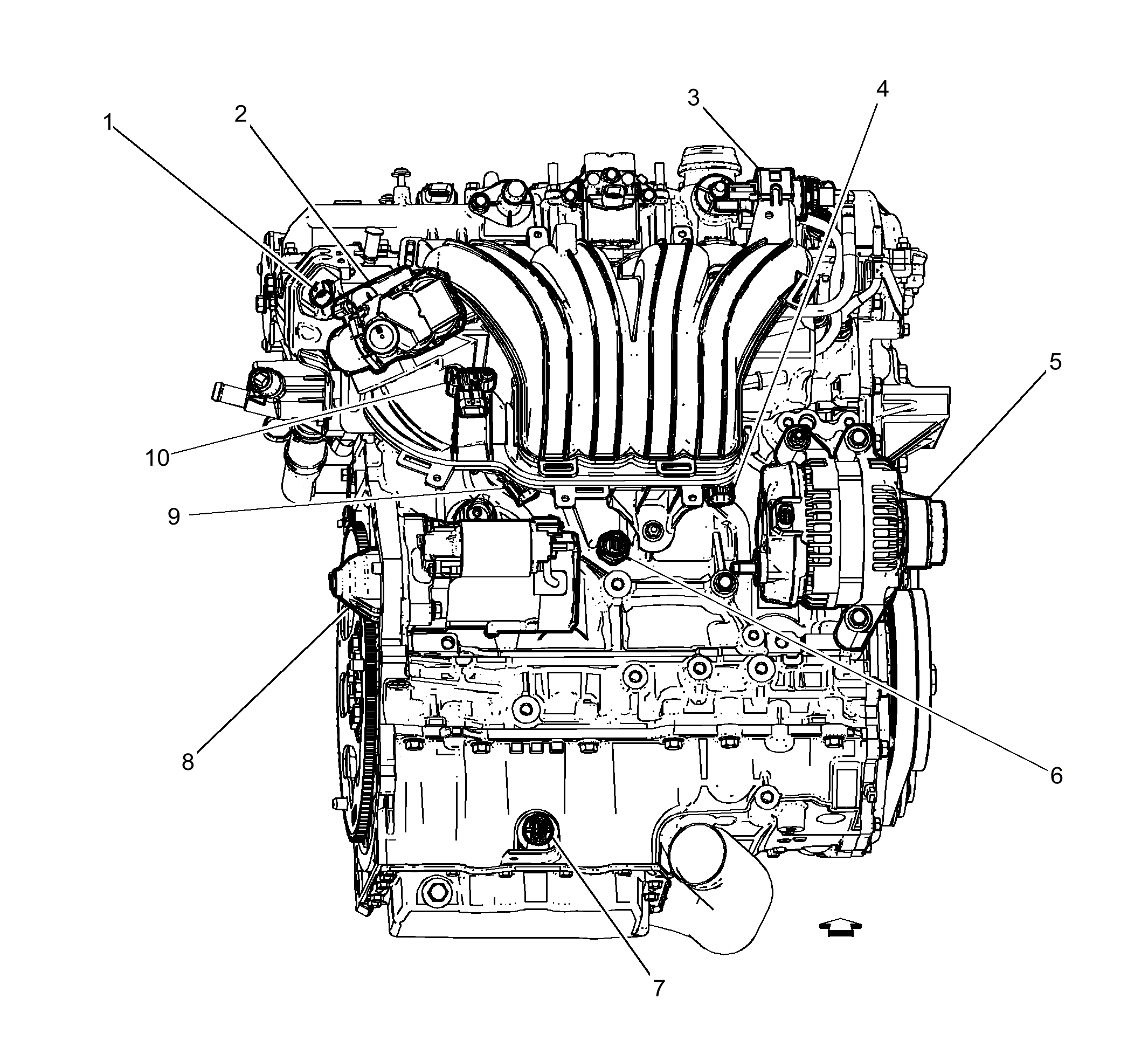

Rear of Engine Components (LCV)
| Items |
|---|
| 1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 2. Q38 Throttle Body Q38 Throttle Body |
| 3. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 4. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 5. G13 Generator G13 Generator |
| 6. B37D Engine Oil Pressure Sensor - Engine Block B37D Engine Oil Pressure Sensor - Engine Block |
| 7. B35 Engine Oil Level Switch B35 Engine Oil Level Switch |
| 8. M64 Starter Motor M64 Starter Motor X1M64 Starter Motor |
| 9. B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 10. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
