Heater and Air Conditioning Remote Control Replacement (Module)

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

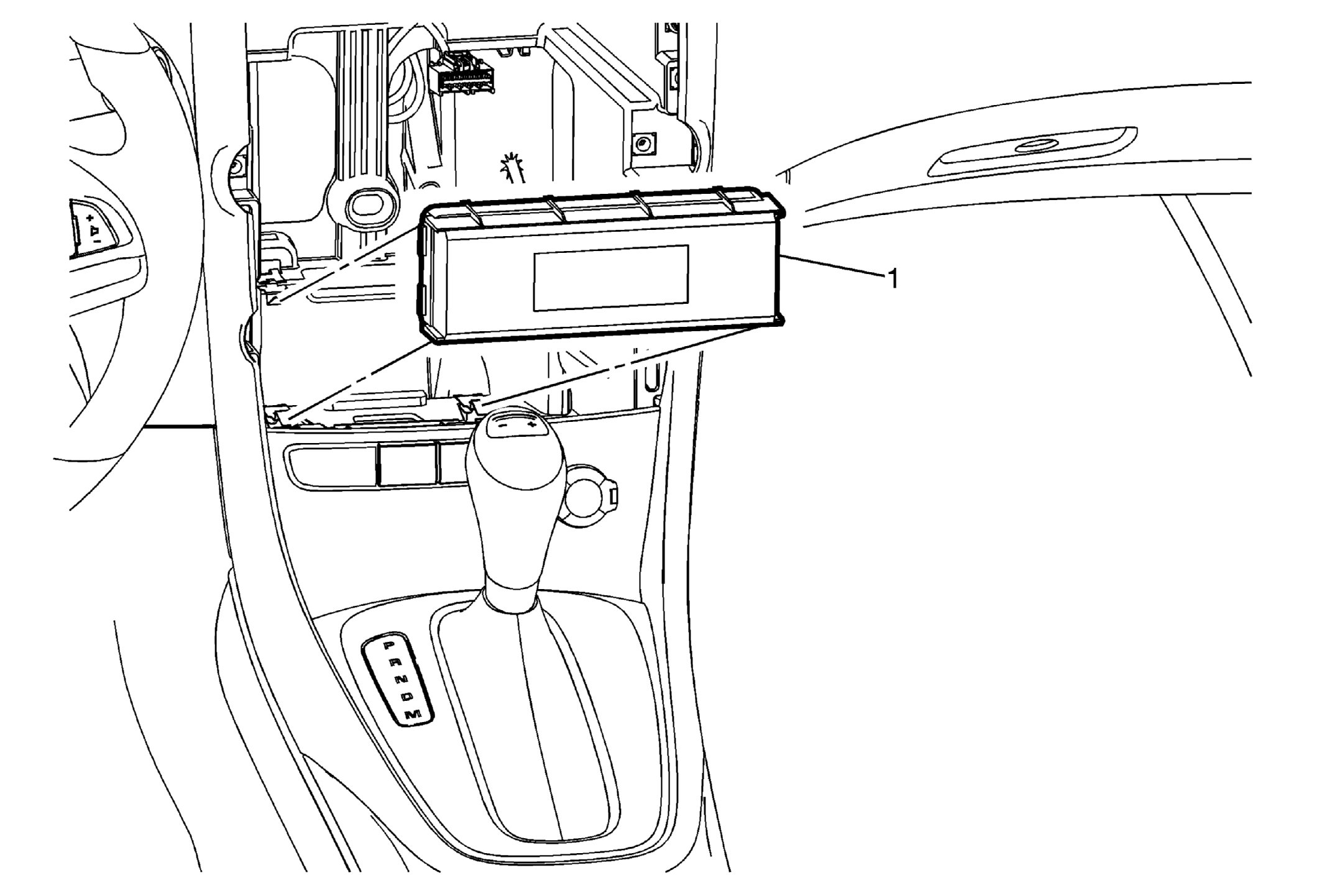

Fig 1: Heater And Air Conditioning Remote Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement . Remove the instrument Panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1	Heater and Air Conditioning Remote Control Procedure Disconnect the heater and air conditioning remote control connector. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .
Remove the instrument Panel trim plate. Refer to Instrument Panel Trim Plate Replacement .

Heater and Air Conditioning Remote Control

Procedure

Disconnect the heater and air conditioning remote control connector.
For programming and set up information, refer to Control Module References .
