Front Fog Lamp Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

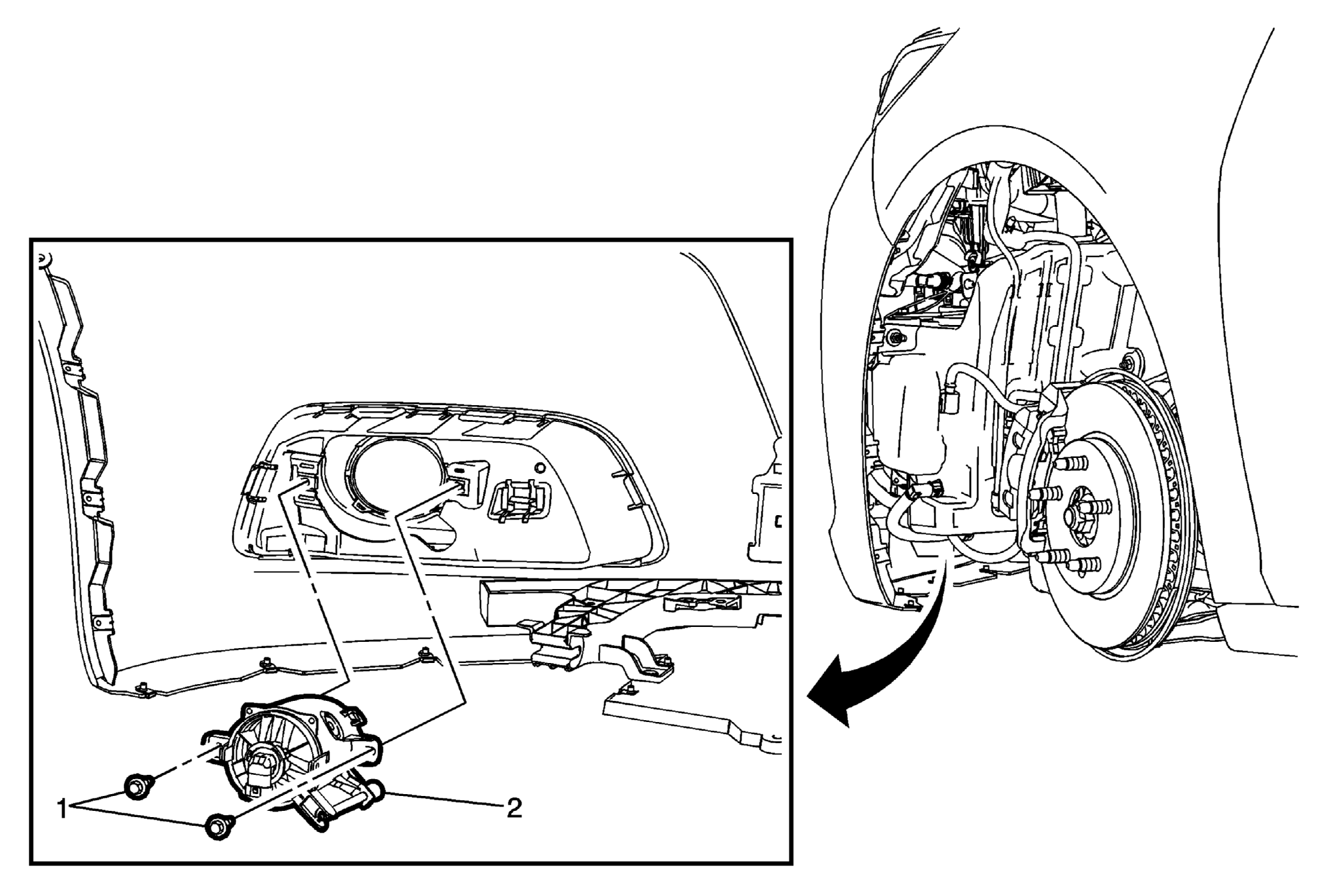

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side) and Front Wheelhouse Front Liner Replacement (Right Side) . |
|
| 1 | Front Fog Lamp Bolt (Qty: 2)
WARNING:
Refer to Halogen Bulb Warning
.
CAUTION:
Refer to Fastener Caution
. Tighten 3 N.m (26 lb in) |
| 2 | Front Fog Lamp Procedure Disconnect the electrical connector. |
