Installation Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

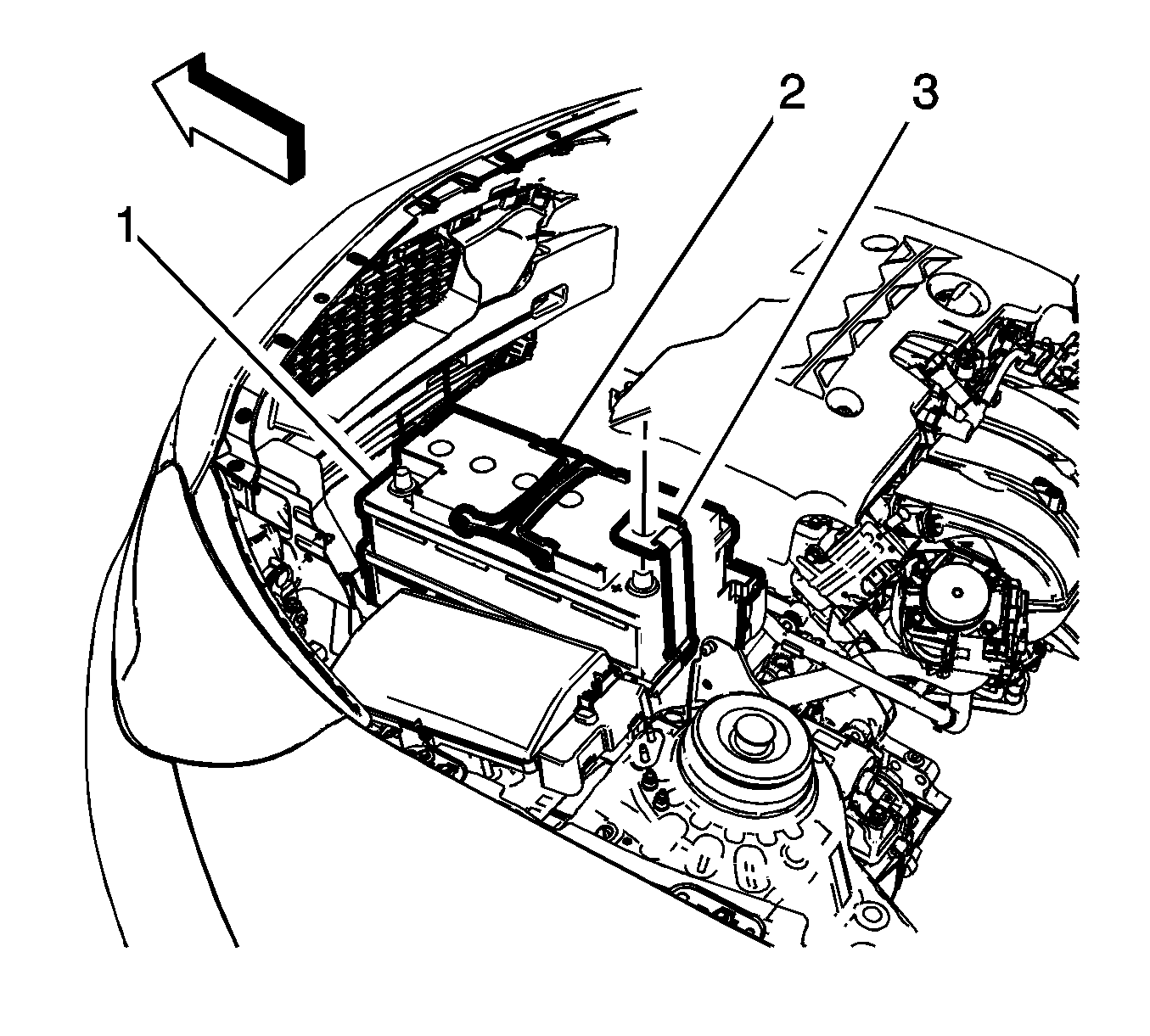

Install the battery (1) into the battery tray and install the battery post hold down strap (3) to the battery positive post.

Fig 1: Battery, Assist Handles & Strap
Courtesy of GENERAL MOTORS COMPANY

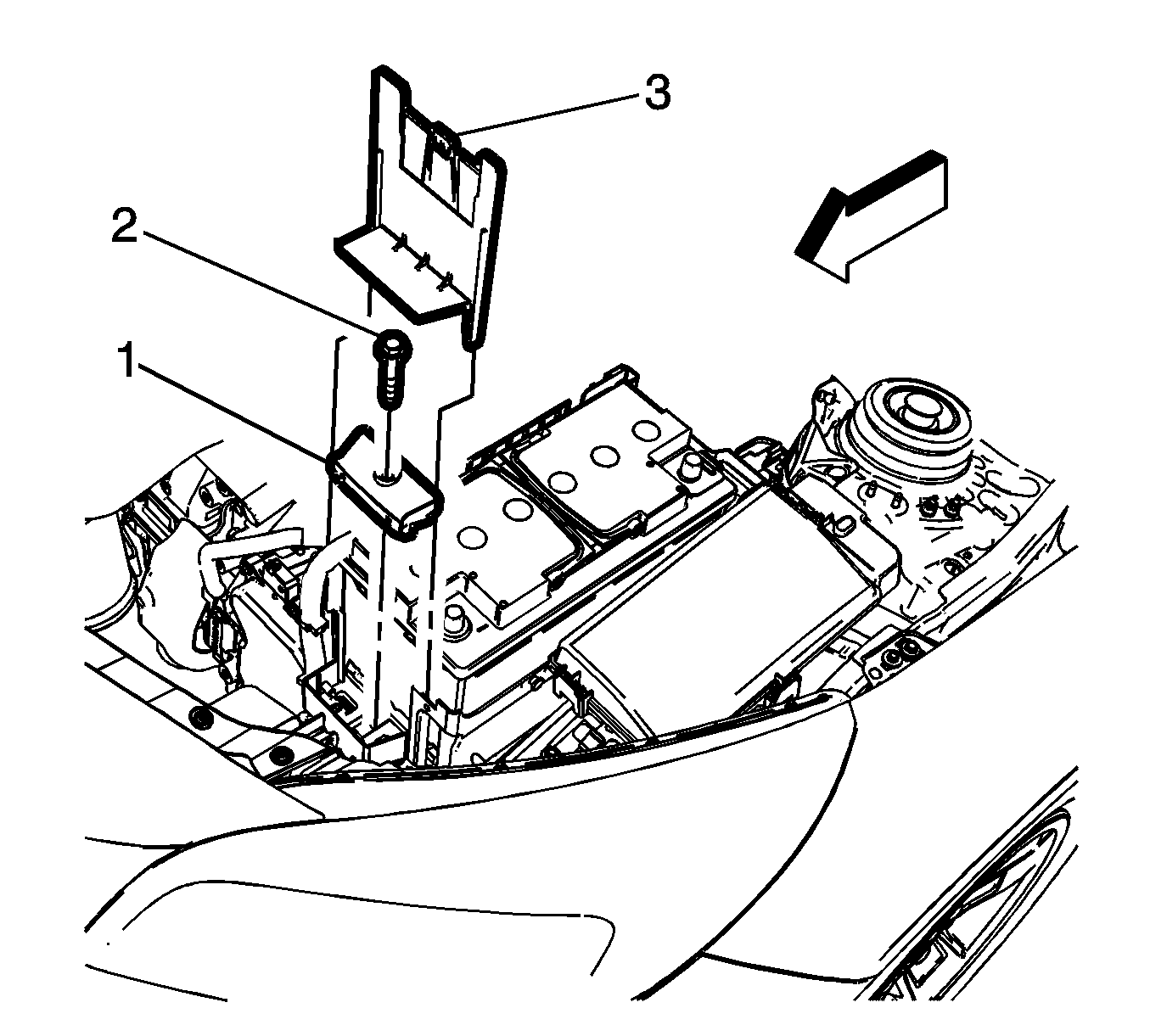

Install the battery hold down retainer (1) and tighten the hold down retainer fastener (2) to 10 N.m (89 lb in).

Fig 2: Battery Tray & Mounting Components
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the battery partition tray (3).

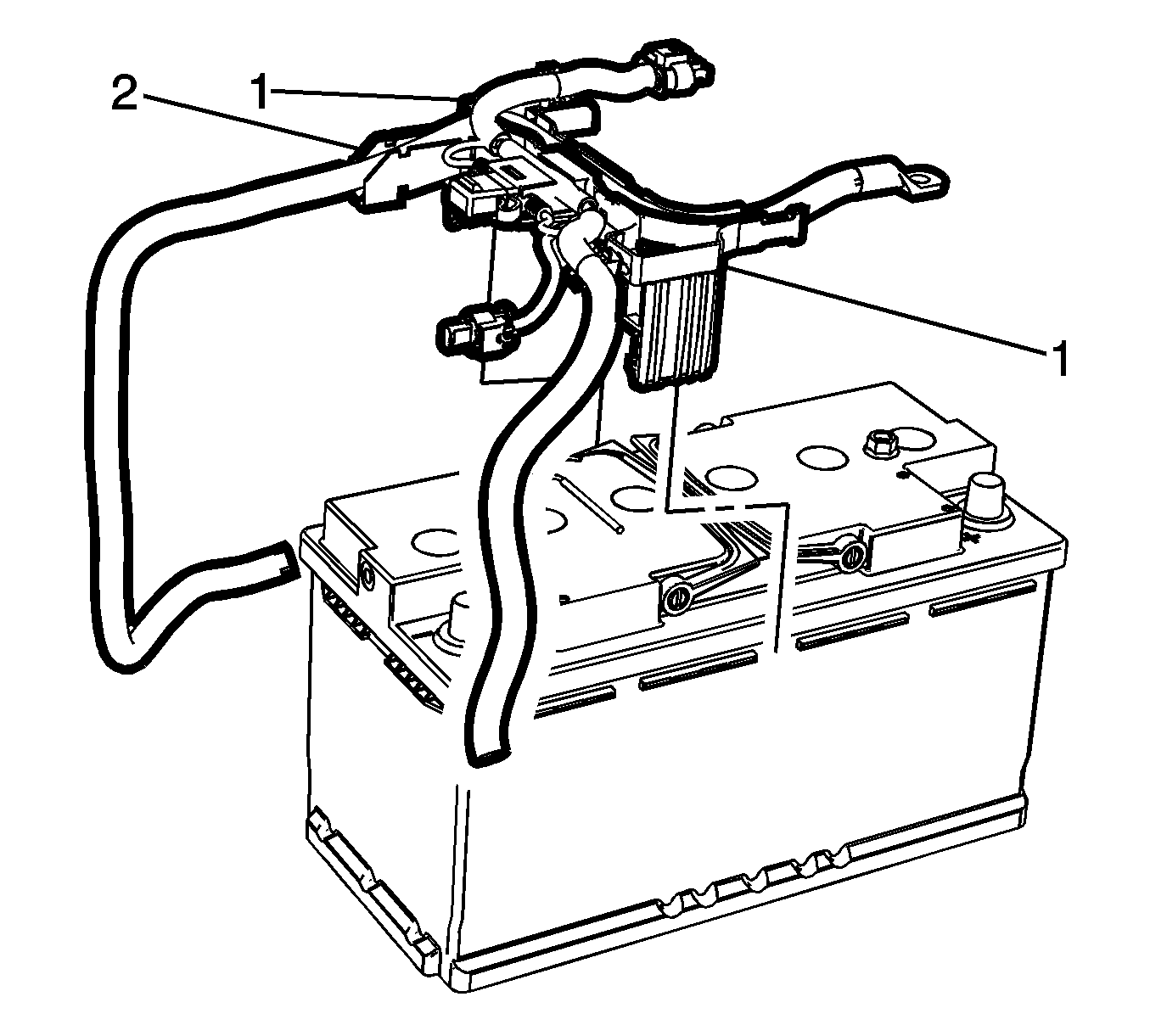

Install the battery channel (2) to the top of the battery with the retainers (1).

Fig 3: Battery Channel Conduit & Retainers
Courtesy of GENERAL MOTORS COMPANY

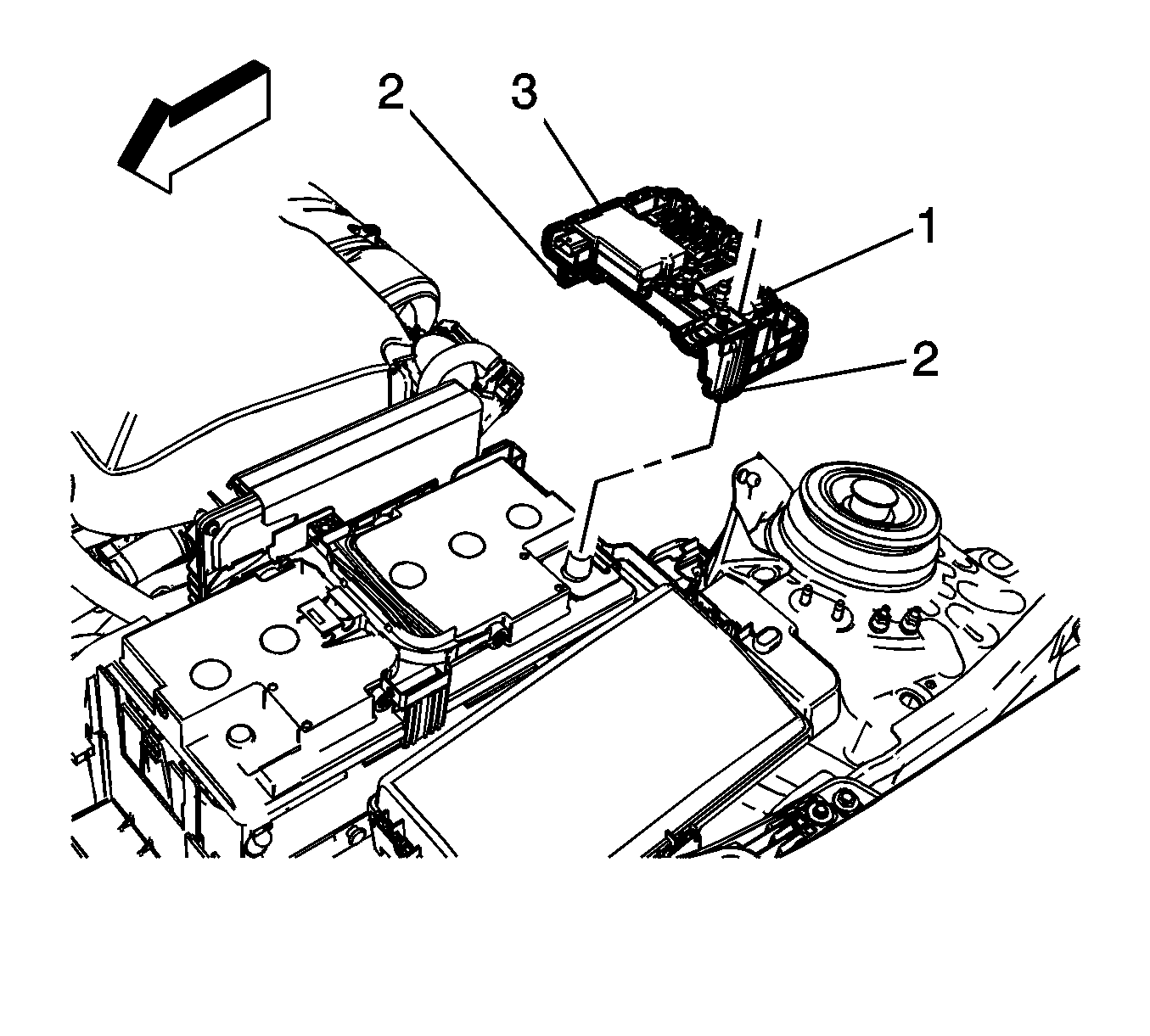

Install the battery fuse block (3) to the battery, with the retainers (2) and tighten the battery post clamp fastener (1) to 4.5 N.m (40 lb in).

Fig 4: Battery Fuse Block, Positive Post Clamp Fastener & Retainer
Courtesy of GENERAL MOTORS COMPANY

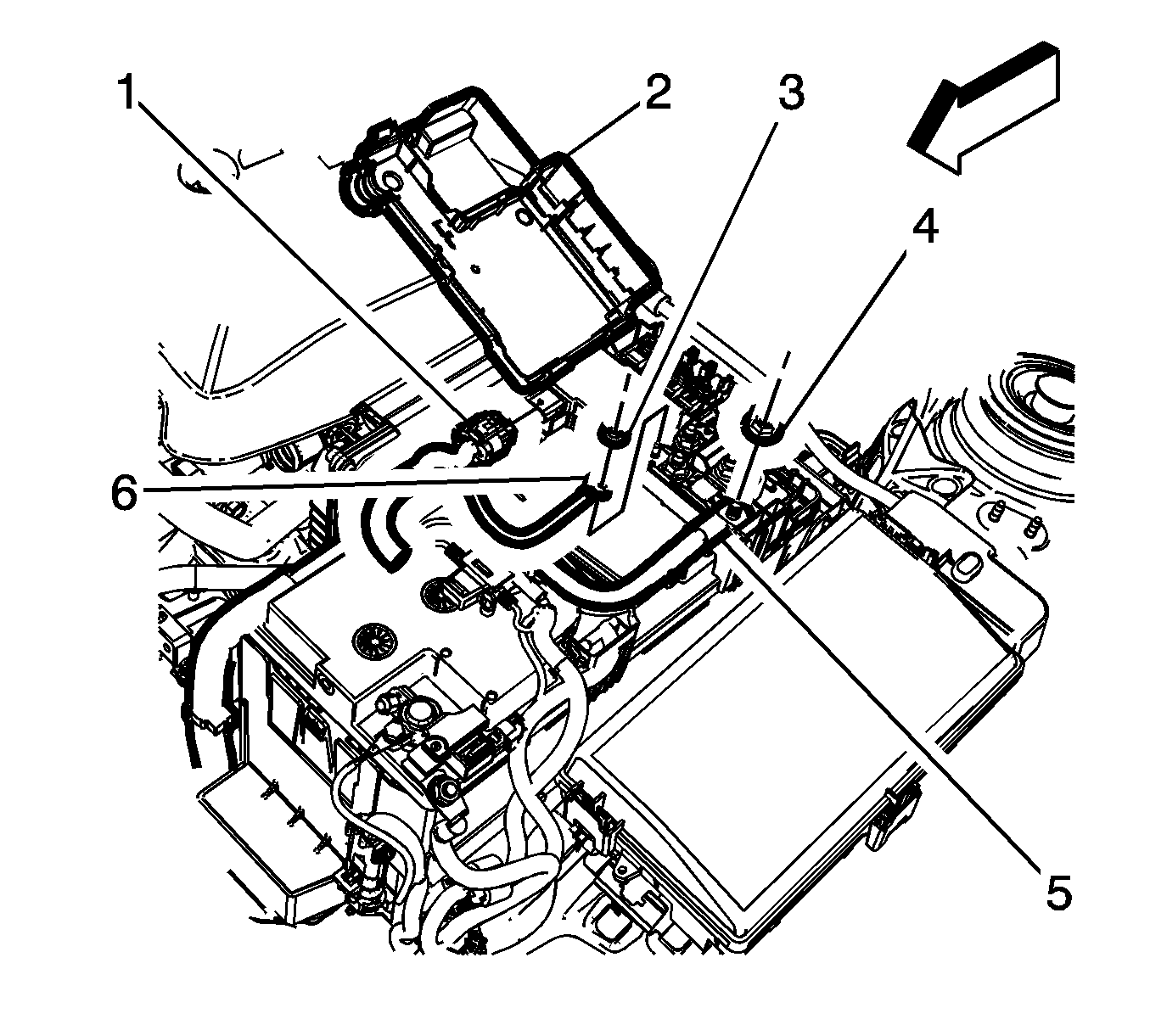

Connect the body harness connector (1) to the battery fuse block.

Fig 5: Body Harness Connector, Terminal, Fuse Block Cover, Battery Positive Cable & Fasteners
Courtesy of GENERAL MOTORS COMPANY
Install the body harness terminal (6) to the battery fuse block stud and tighten the fastener (3) to 4.5 N.m (40 lb in).
Install the battery positive cable (5) to the battery fuse block stud and tighten the fastener (4) to 12 N.m (106 lb in).
Close the fuse block cover (2).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

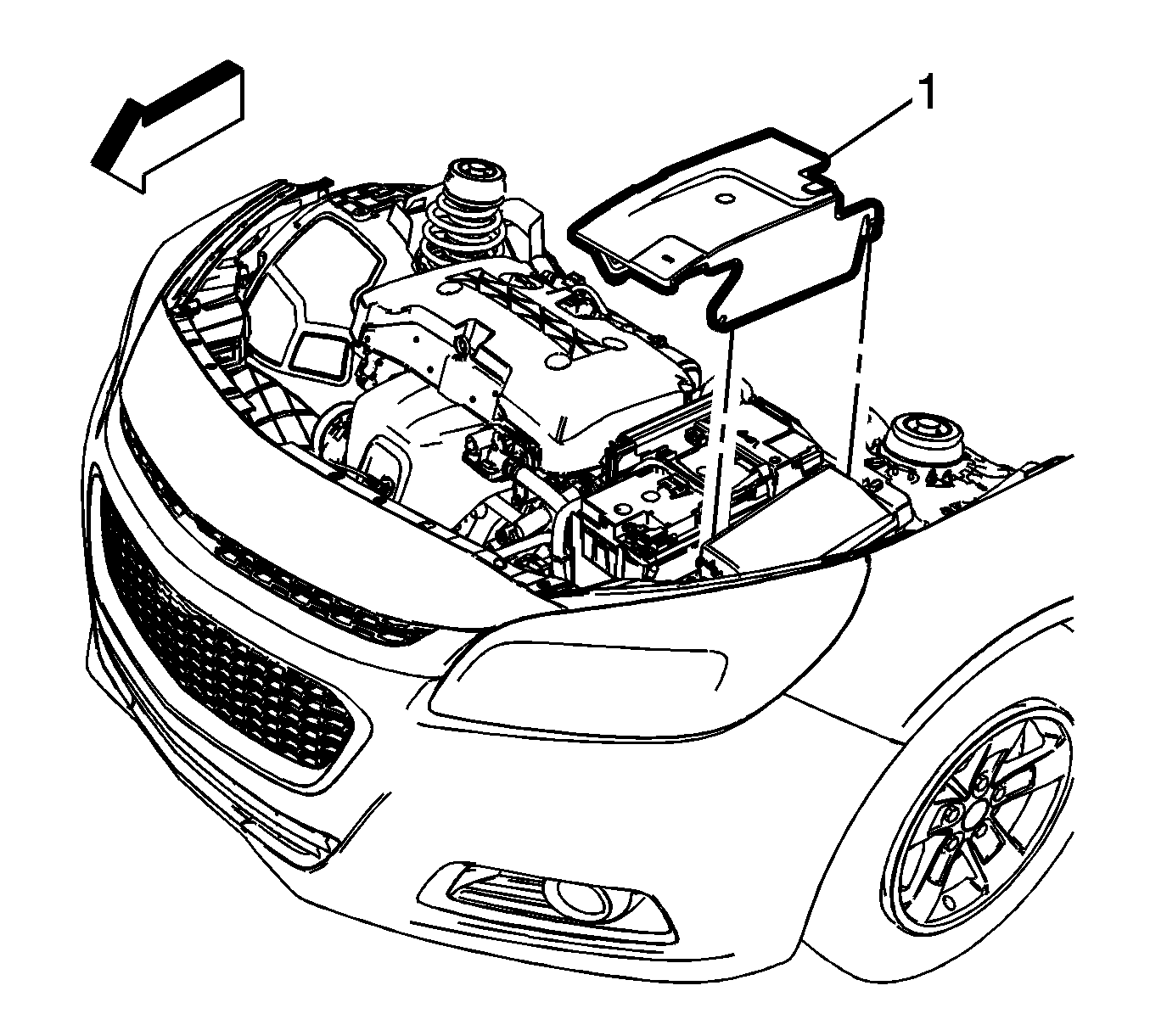

Install the battery cover (1).

Fig 6: Battery Cover
Courtesy of GENERAL MOTORS COMPANY
