Radio Antenna Amplifier Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

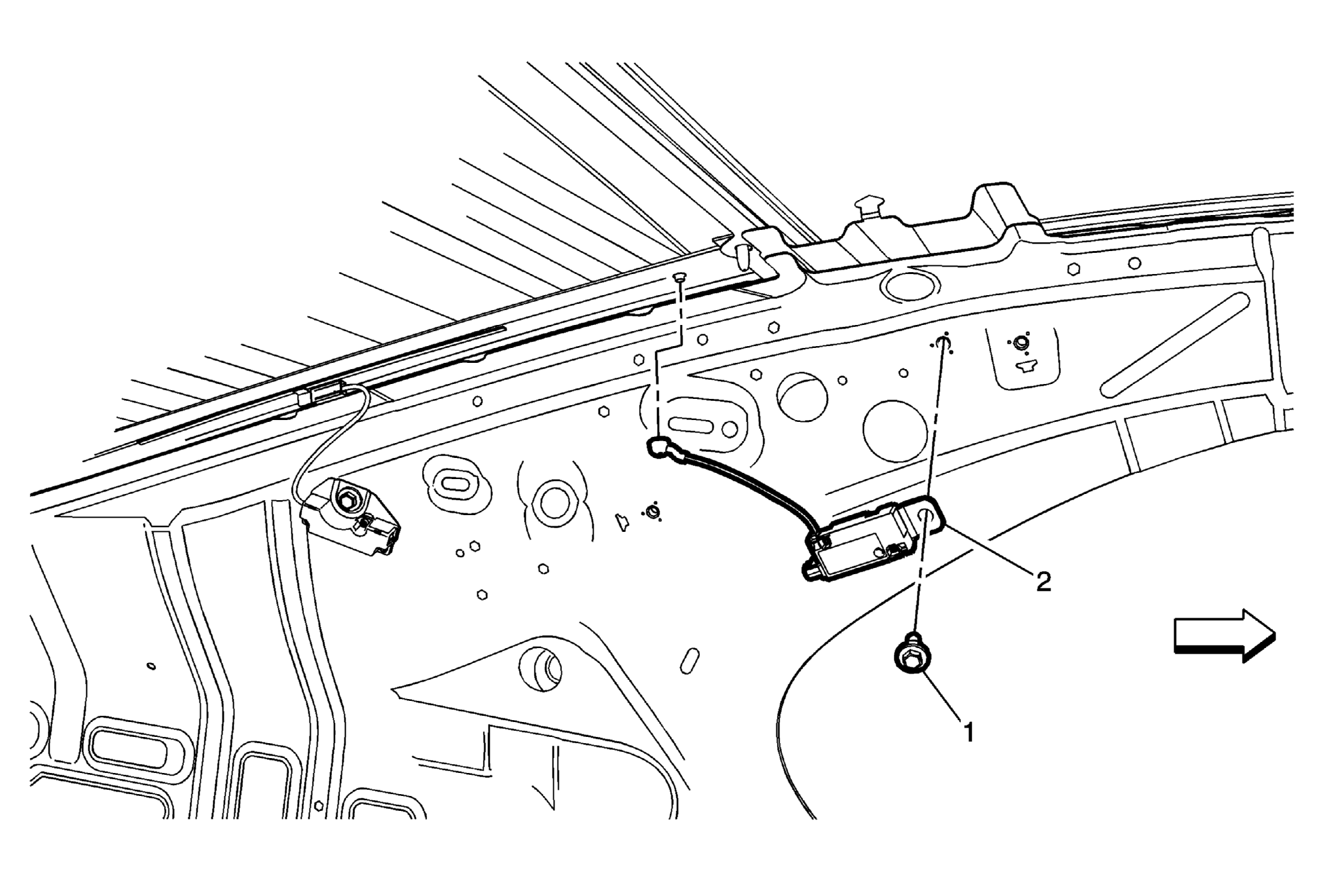

Fig 1: Radio Antenna Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left quarter trim panel. Refer to Quarter Trim Panel Replacement .
1	Radio Antenna Amplifier Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Antenna Amplifier Procedure Disconnect the electrical connection. Unsnap the wire from the glass.

Callout

Component Name

Preliminary Procedure
Remove the left quarter trim panel. Refer to Quarter Trim Panel Replacement .

Radio Antenna Amplifier Fastener

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Radio Antenna Amplifier

Procedure

Disconnect the electrical connection.
Unsnap the wire from the glass.
