Section 20 (Cruise Control System)
>>
Schematic Wiring Diagrams
>>
Cruise Control Wiring Schematics
>>
Cruise Control
Cruise Control
WARNING:
This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

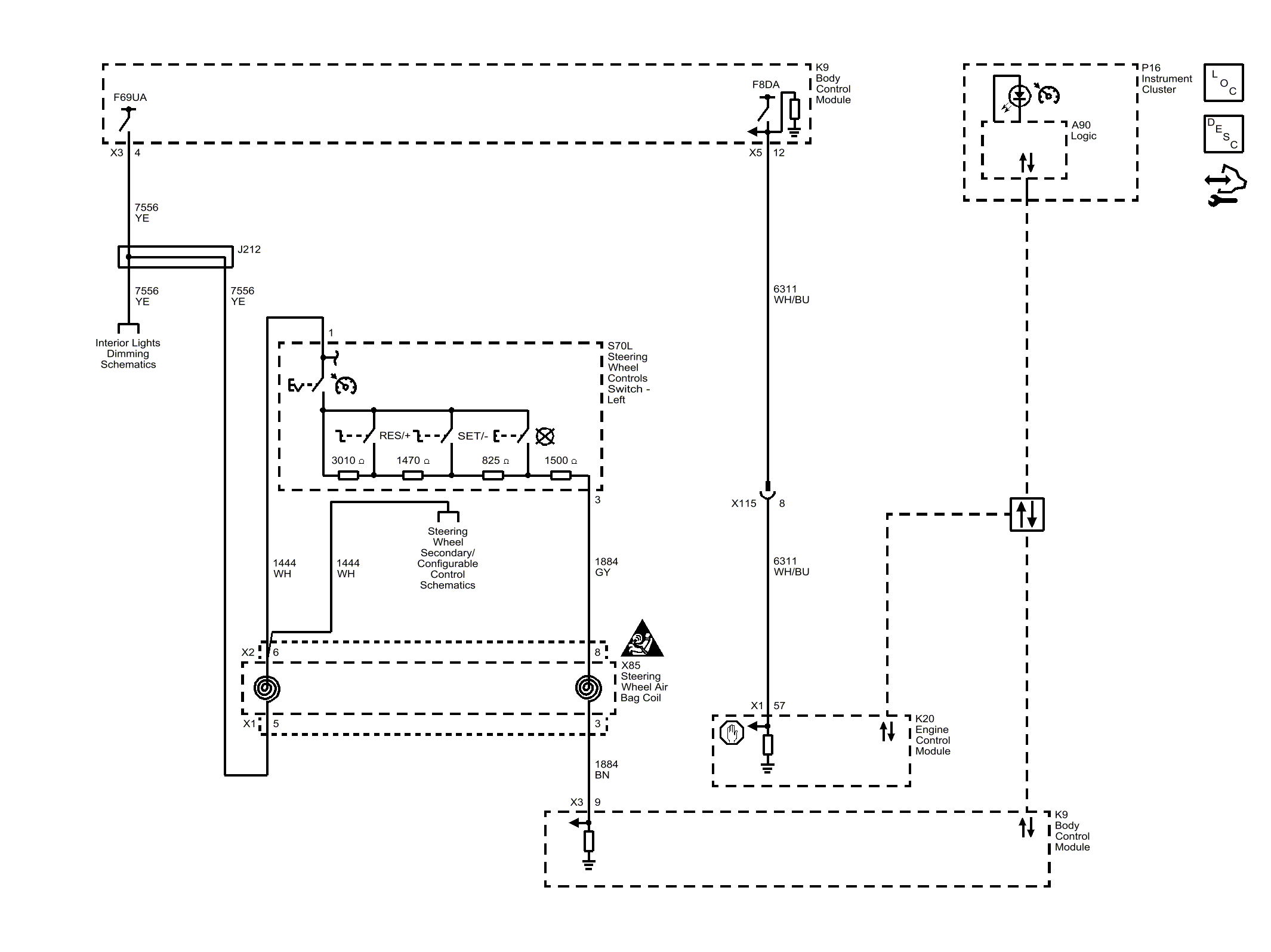

Fig 1: Cruise Control
Courtesy of GENERAL MOTORS COMPANY
