Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

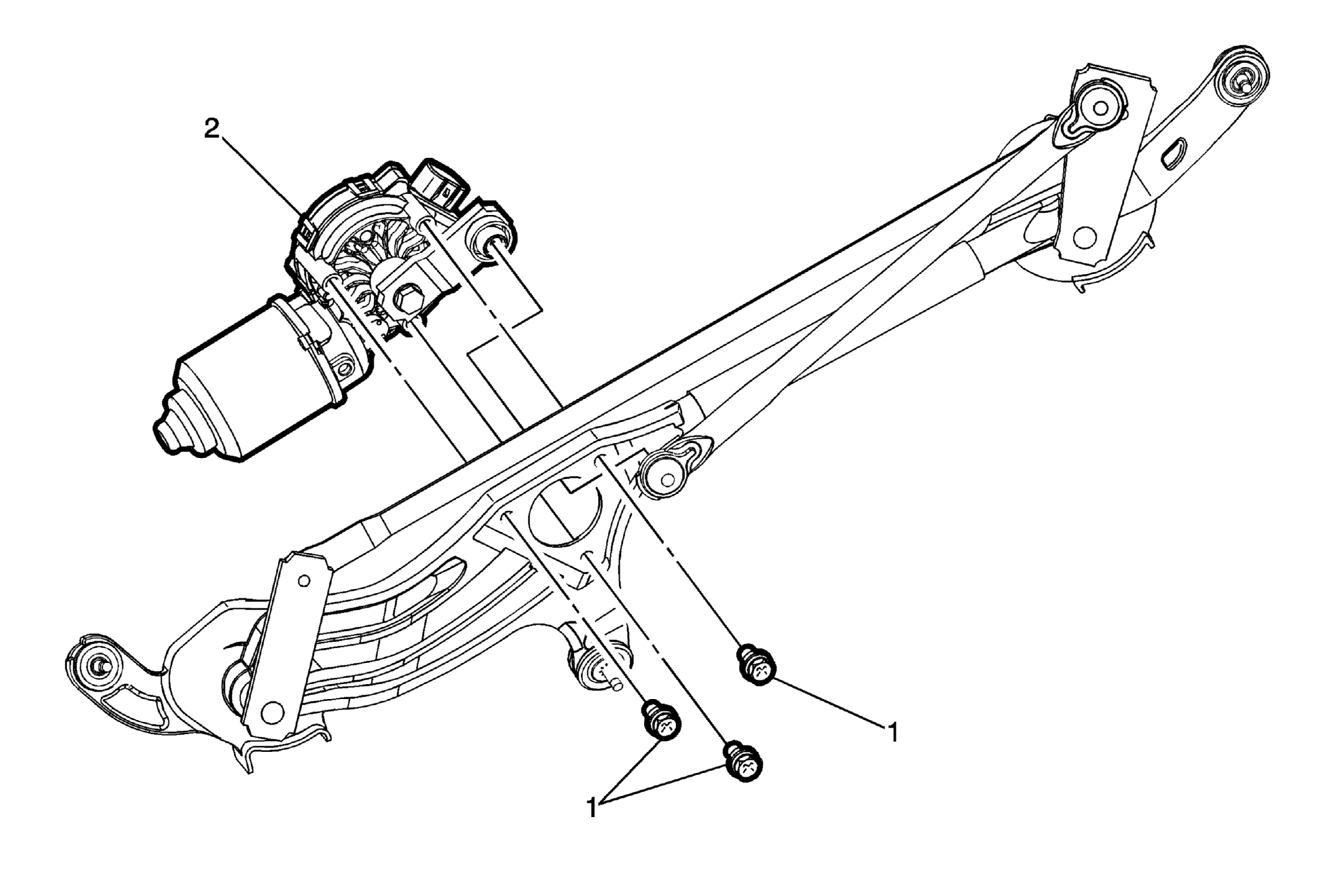

Fig 1: Windshield Wiper Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield wiper system module. Refer to Windshield Wiper System Module Replacement .
1	Windshield Wiper Motor Bolt (Qty: 3) Tighten 8.5 N.m (75 lb in)
2	Windshield Wiper Motor Procedure Using the J-39232 separator or similar tool, remove the windshield wiper transmission drive link from the wiper motor crank arm ball stud. Using the J-39529 installer or similar tool, install the windshield wiper transmission drive link onto the wiper motor crank arm ball stud. NOTE: Apply a small amount of grease to the inner cup on the transmission links to aid in installation. Special Tools J-39232 Wiper Linkage Separator J-39529 Wiper Linkage Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the windshield wiper system module. Refer to Windshield Wiper System Module Replacement .

Windshield Wiper Motor Bolt (Qty: 3)
Tighten
8.5 N.m (75 lb in)

Windshield Wiper Motor

Procedure

Using the J-39232 separator or similar tool, remove the windshield wiper transmission drive link from the wiper motor crank arm ball stud.
Using the J-39529 installer or similar tool, install the windshield wiper transmission drive link onto the wiper motor crank arm ball stud.

NOTE: Apply a small amount of grease to the inner cup on the transmission links to aid in installation.

Special Tools

J-39232 Wiper Linkage Separator
J-39529 Wiper Linkage Installer

For equivalent regional tools, refer to Special Tools .
