Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

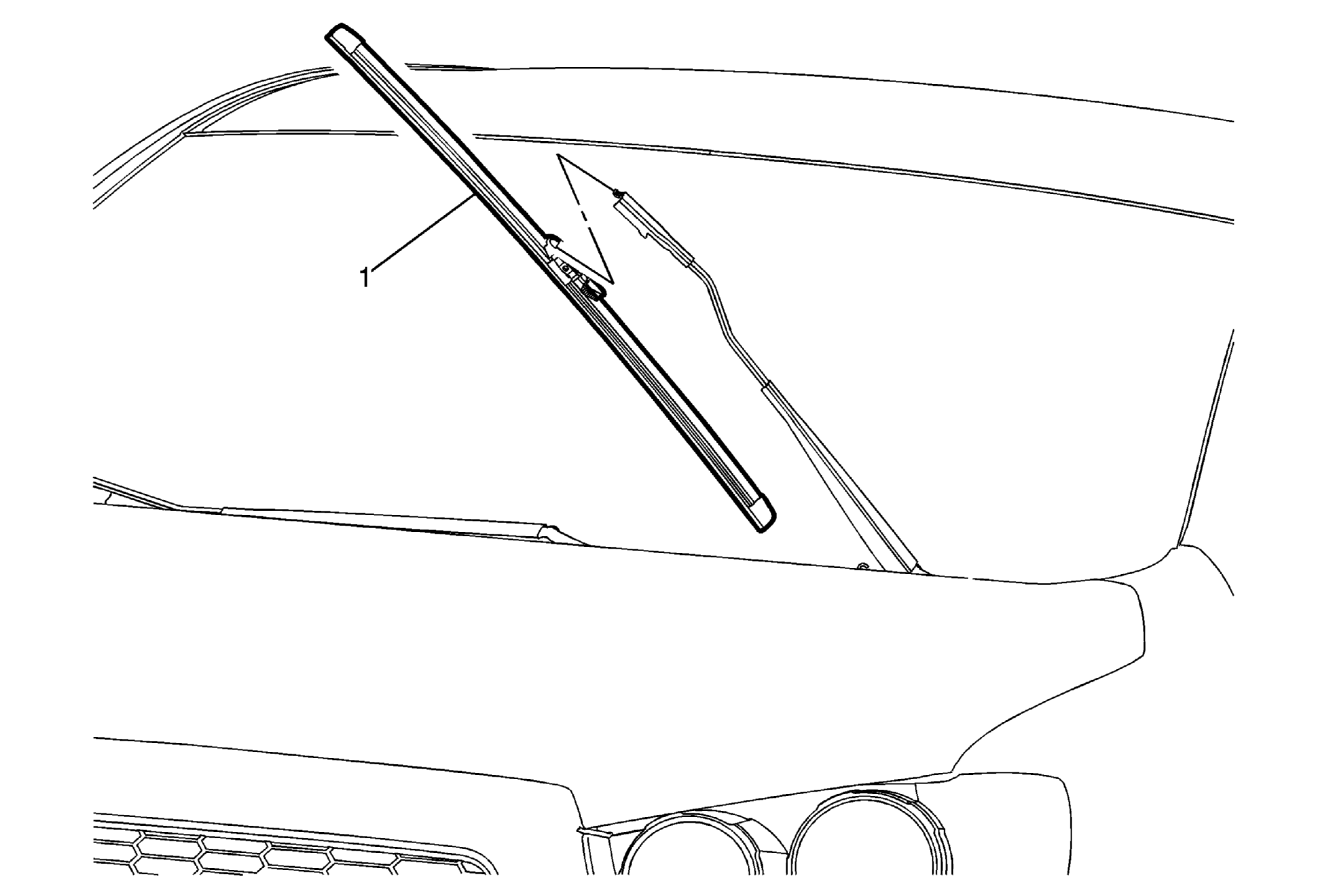

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Wiper Blade Assembly Procedure Reposition and hold the wiper arm off the windshield to perform the wiper blade replacement. Open the cover. Detach the wiper blade from the hook end of the windshield wiper arm. Install the new wiper blade to the hook end of the windshield wiper arm. Close the cover. Carefully reposition the wiper arm onto the windshield. Inspect the wiper arm for proper operation.

Callout

Component Name

Windshield Wiper Blade Assembly

Procedure

Reposition and hold the wiper arm off the windshield to perform the wiper blade replacement.
Open the cover.
Detach the wiper blade from the hook end of the windshield wiper arm.
Install the new wiper blade to the hook end of the windshield wiper arm.
Close the cover.
Carefully reposition the wiper arm onto the windshield.
Inspect the wiper arm for proper operation.
