Windshield Washer Solvent Container Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

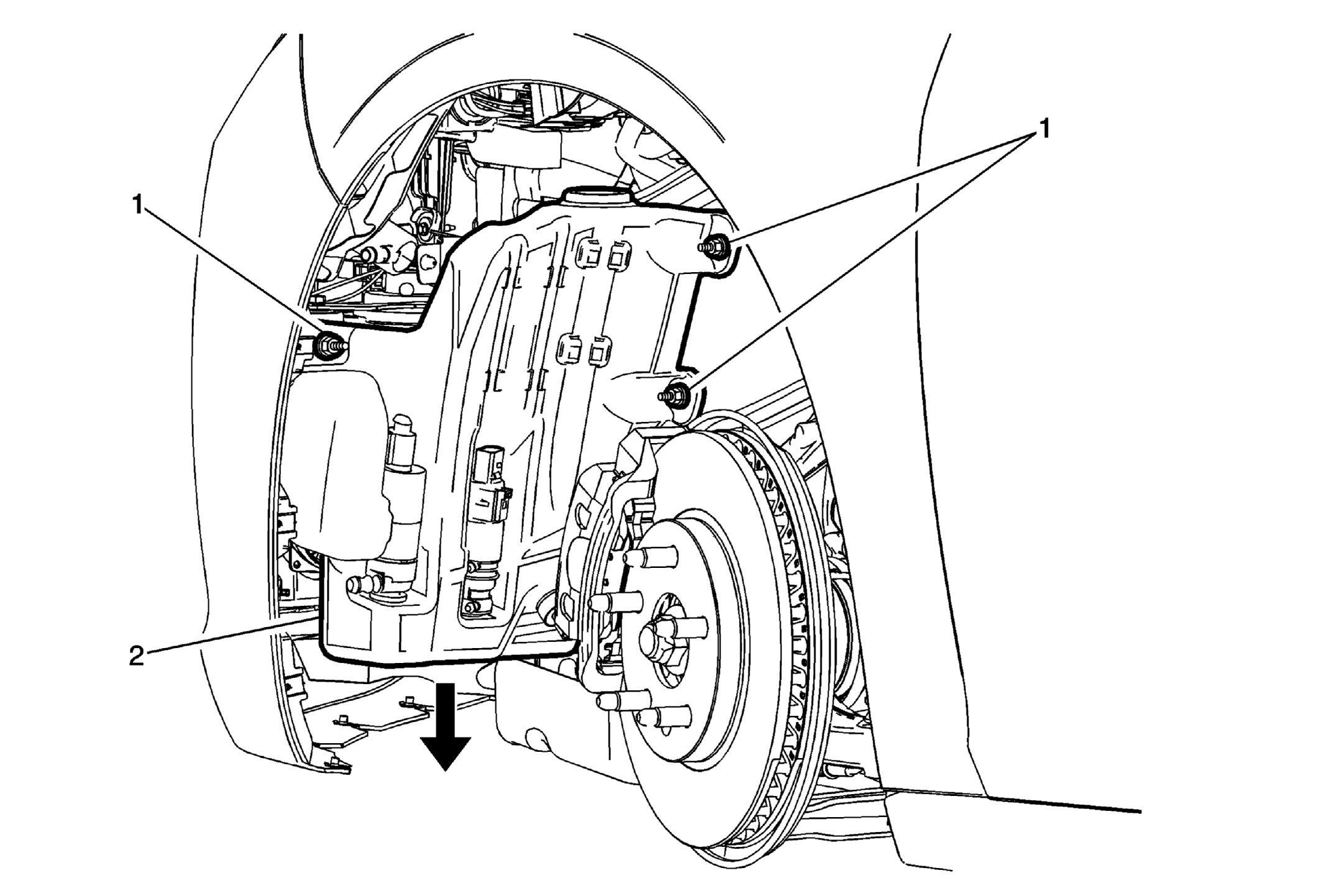

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front left front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side)
.
- Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
- Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield and headlamp washer hose is disconnected.
- Disconnect the windshield and headlamp washer hose from the windshield washer solvent container.
- Disconnect all electrical connector from the windshield and headlamp washer pumps.
|
| 1 |
Windshield Washer Solvent Container Nut (Qty: 3)
Tighten
9 N.m (80 lb in) |
| 2 |
Windshield Washer Solvent Container Procedure
- Remove the windshield washer solvent container from the three studs on the front compartment front outer side rail.
- Empty the windshield washer solvent into a suitable clean container.
- Transfer parts as needed.
|
