Module Power, Ground, Serial Data and MIL

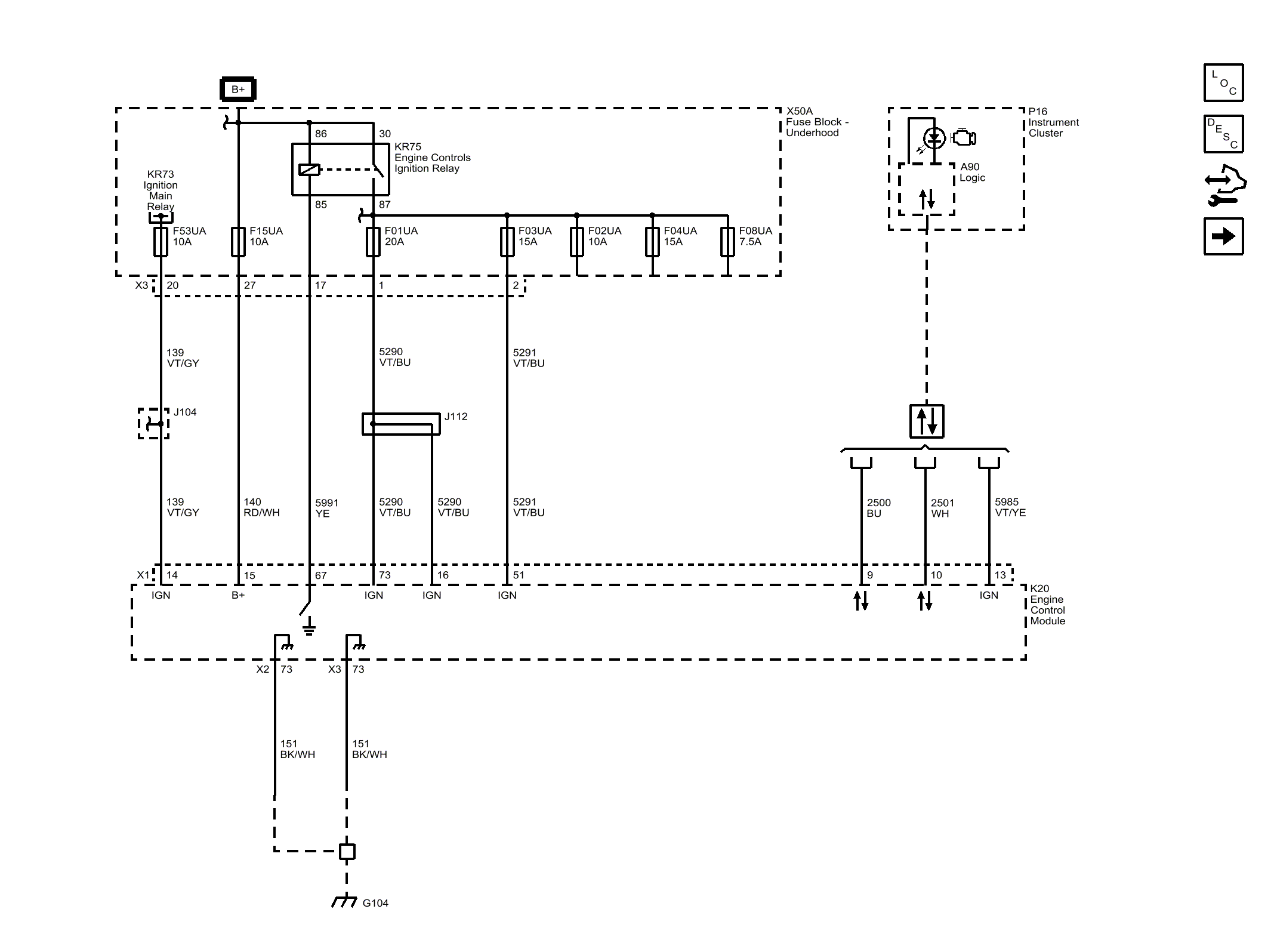

Fig 1: Module Power, Ground, Serial Data and MIL

GM4212052

Courtesy of GENERAL MOTORS COMPANY
