Linear Interconnect Network (LIN) Bus 1, 2, 3, 4, and 9

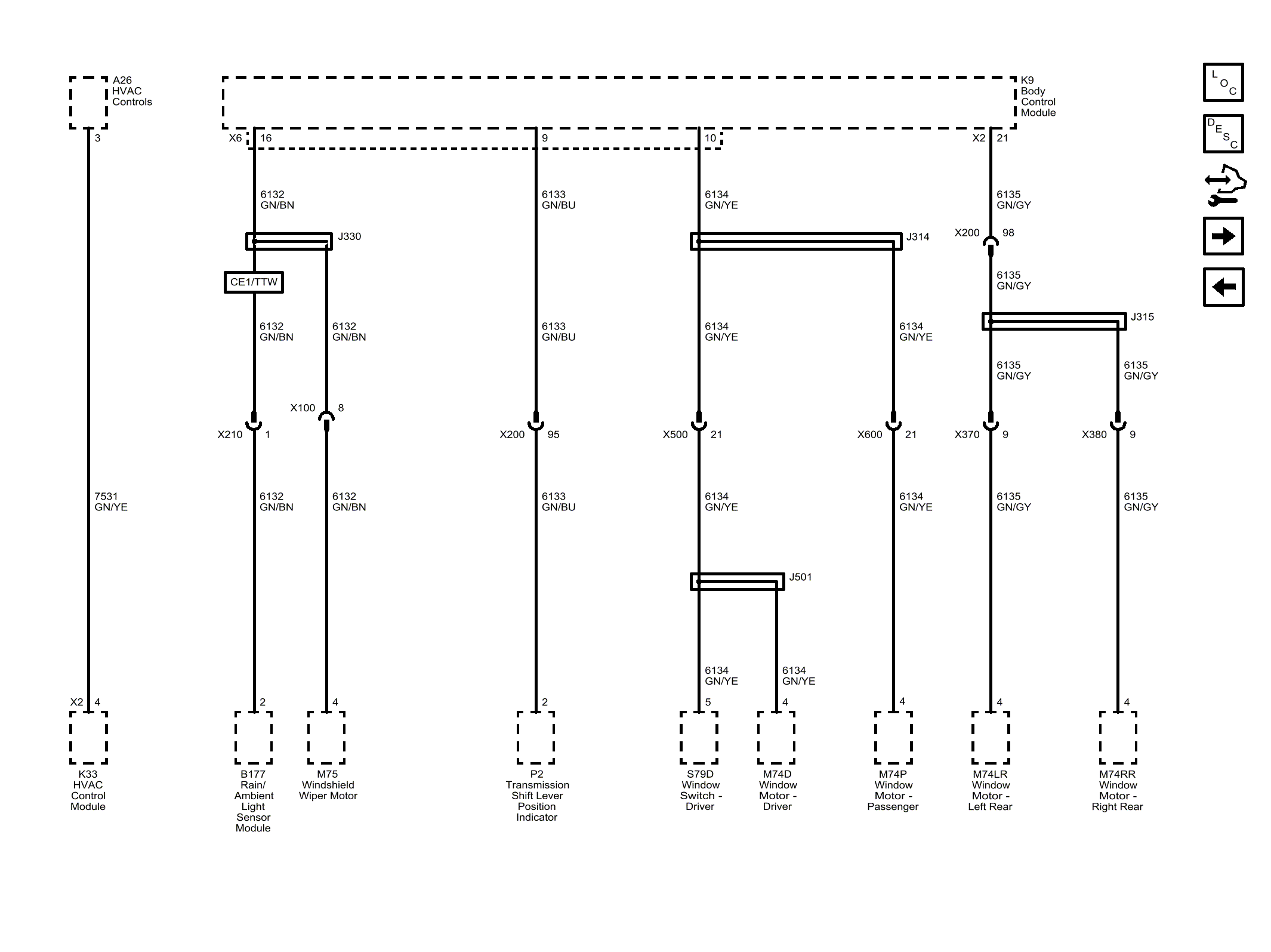

Fig 1: Linear Interconnect Network (LIN) Bus 1, 2, 3, 4, and 9

GM4212023

Courtesy of GENERAL MOTORS COMPANY
