Turbocharger Air Pressure Sensor Replacement

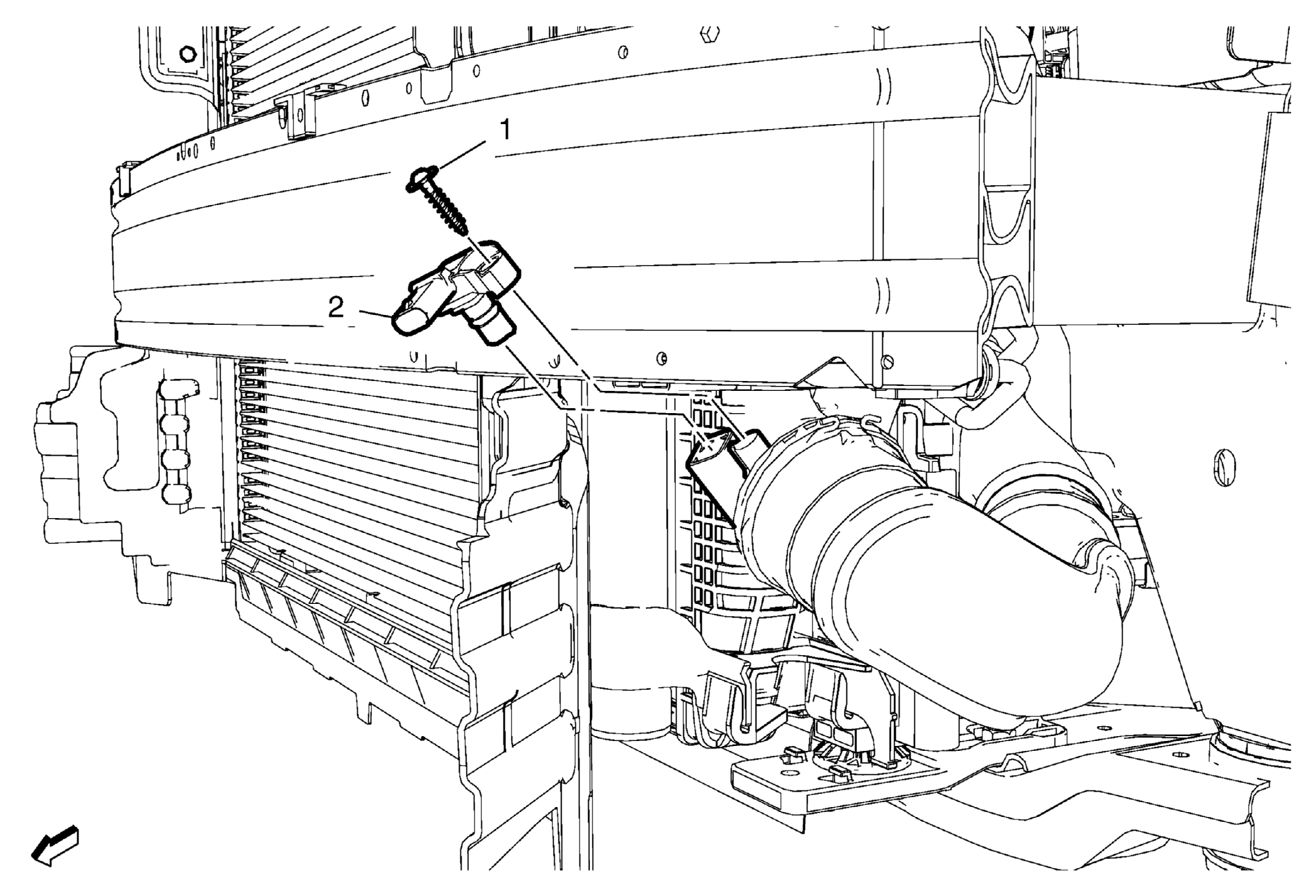

Fig 1: Turbocharger Air Pressure Sensor
GM3216229Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper. Refer to Front Bumper Fascia Replacement .
  2. Disconnect the electrical connection.
1 Turbocharger Air Pressure Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Turbocharger Air Pressure Sensor
