Installation Procedure

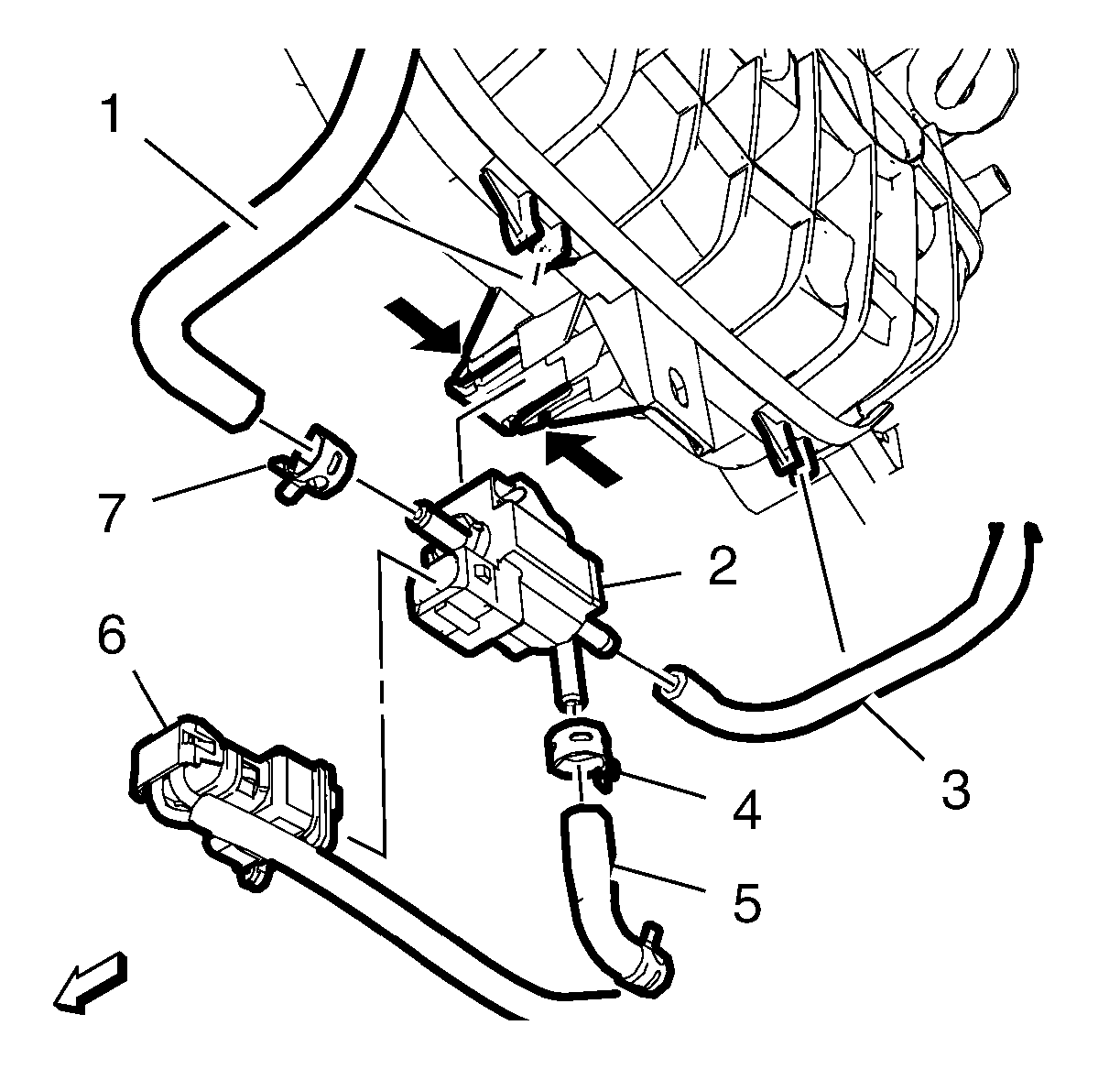

    Fig 1: Charge Air Bypass Valve
    GM2968088Courtesy of GENERAL MOTORS COMPANY
  1. Install charge air bypass valve (2).
  2. Install the 3 charge air bypass valve hoses (1, 3, 5).
  3. Install the 2 charge air bypass valve hose clamps (4, 7).
  4. Connect the charge air bypass valve wiring harness plug (6).

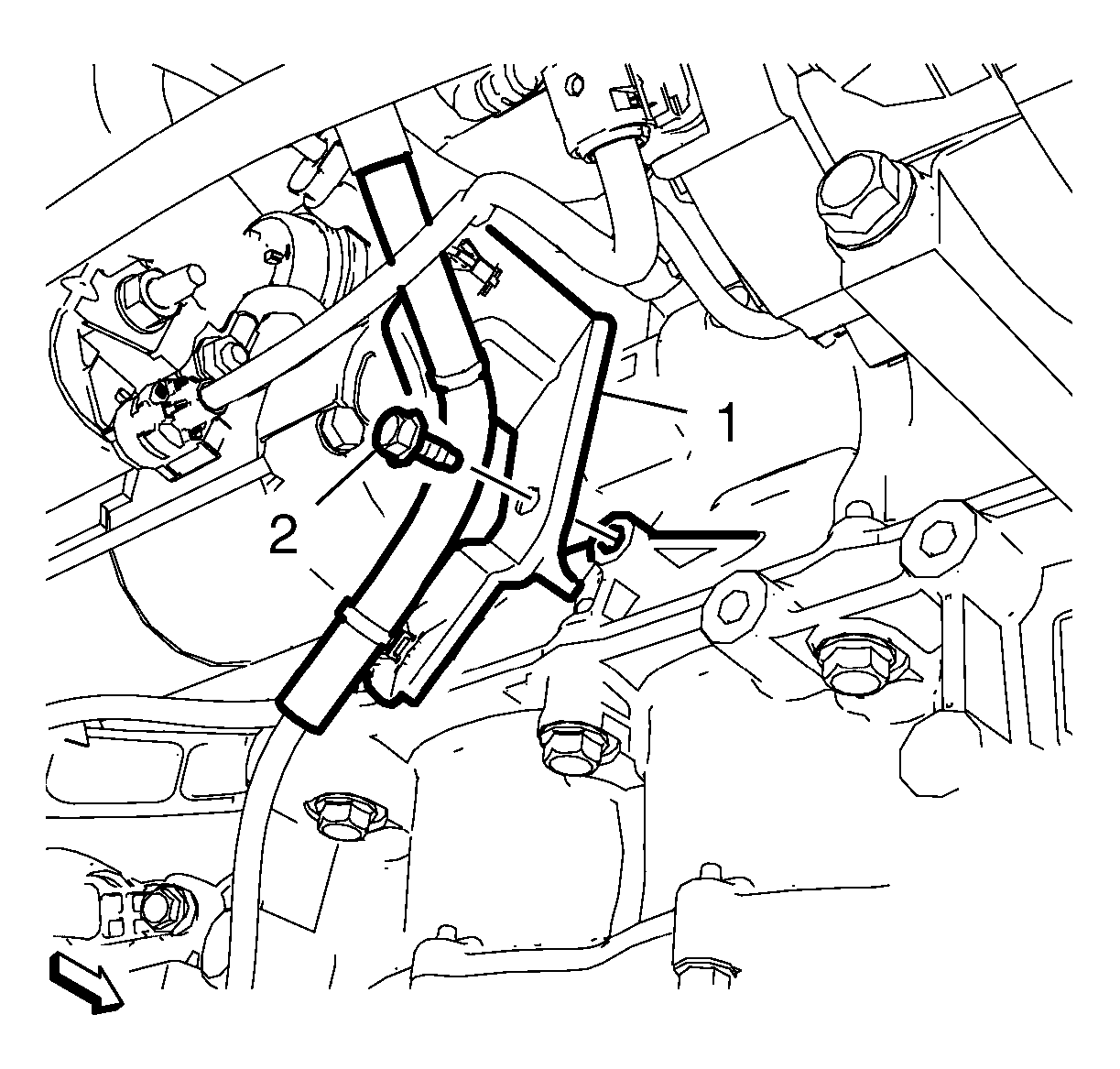

    5. Fig 2: Wiring Harness Bracket
    GM2968087Courtesy of GENERAL MOTORS COMPANY
  5. Install the wiring harness bracket (1) to the engine block.
    6. CAUTION:

    Refer to Fastener Caution .

  6. Install the wiring harness bracket bolt (2) to 22 N.m (16 lb ft).
  7. Lower and unsupported the vehicle. Refer to Lifting and Jacking the Vehicle .
  8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
