Camshaft Position Sensor Replacement - Exhaust

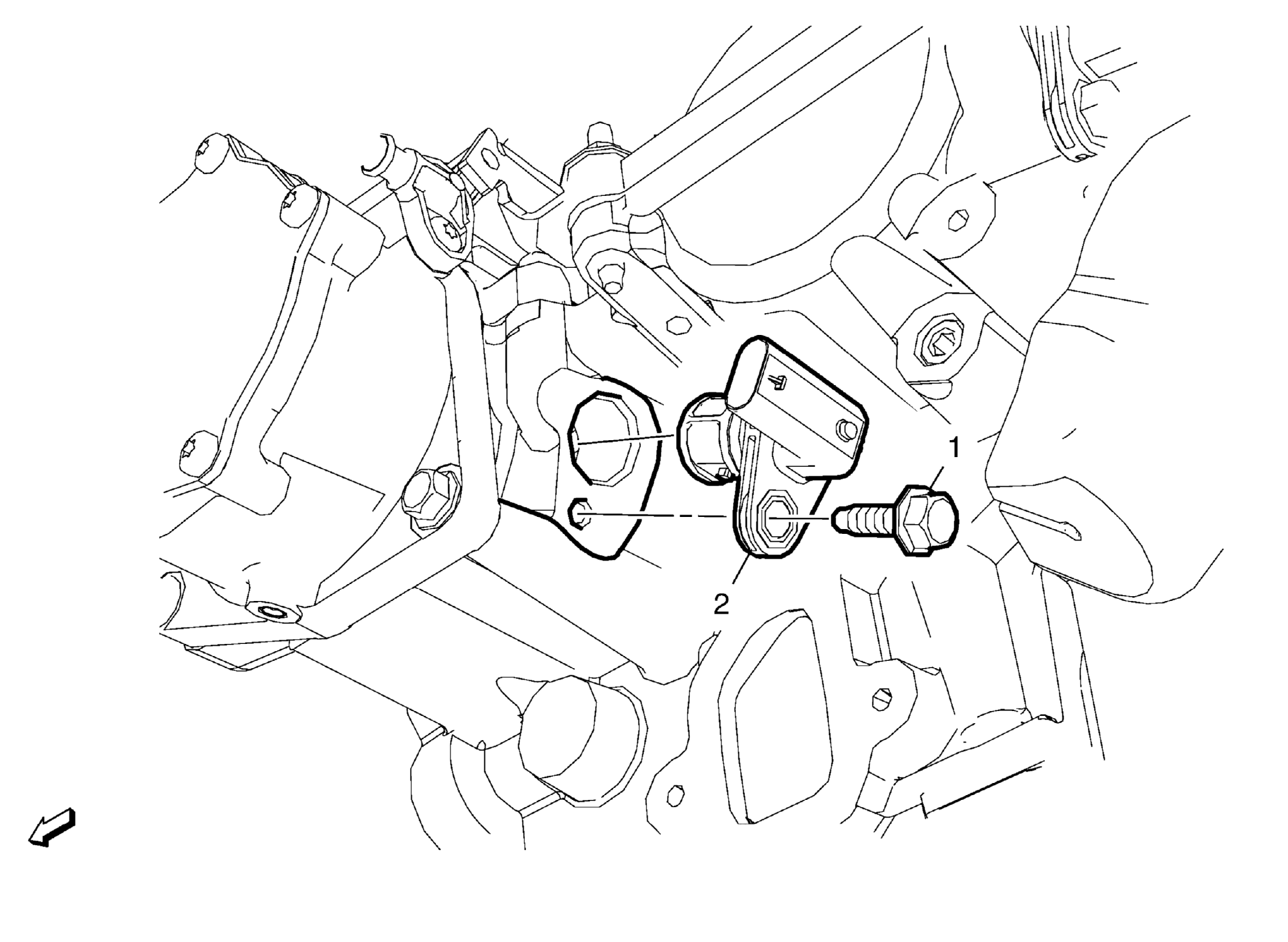

Fig 1: Camshaft Position Sensor - Exhaust

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the water outlet. Refer to Water Outlet Replacement . Disconnect electrical connector.
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in).
2	Camshaft Position Sensor - Exhaust

Callout

Component Name

Preliminary Procedures

Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in).

Camshaft Position Sensor - Exhaust
