Rear Body Fuse Block Replacement

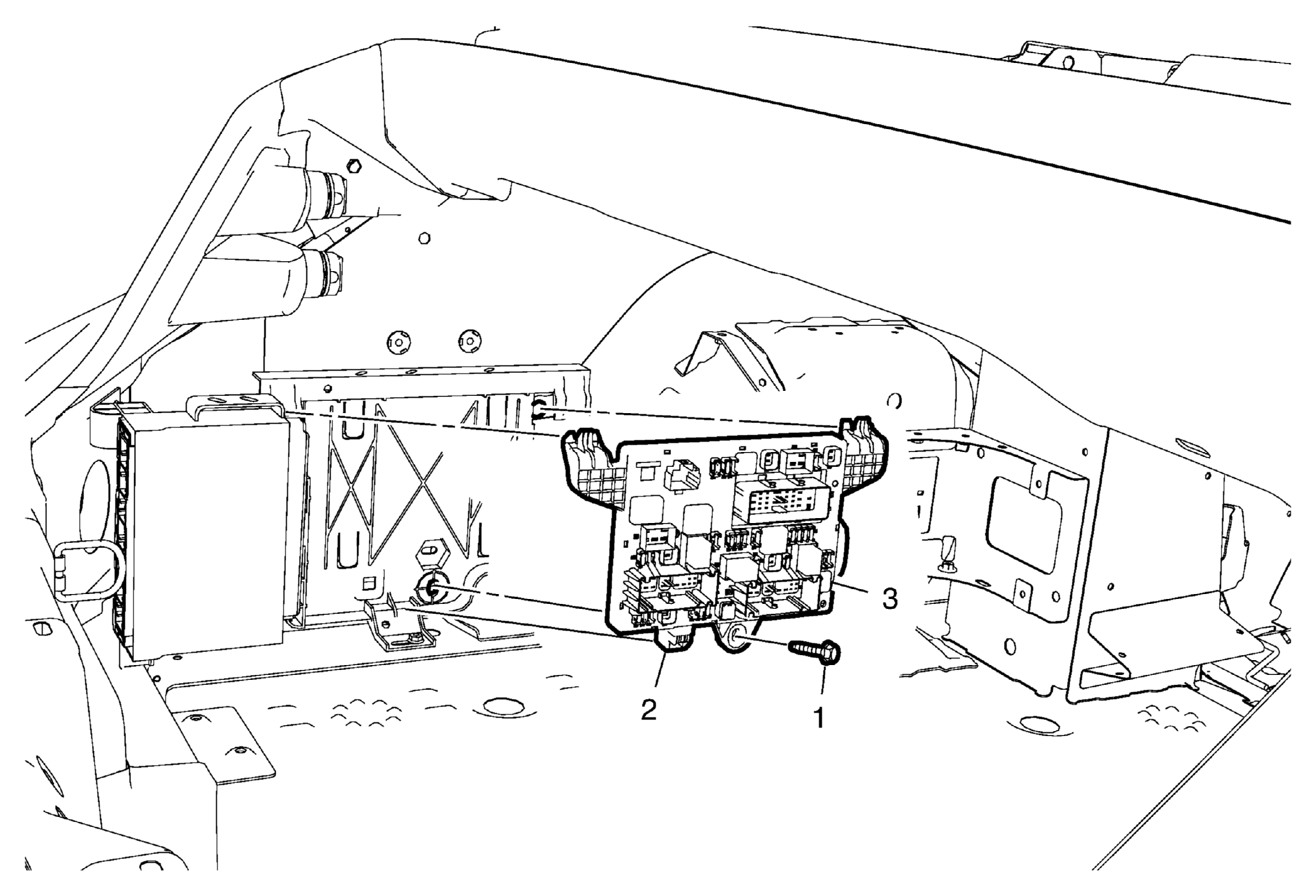

Fig 1: Rear Body Fuse Block

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement - Left Side .
1	Rear Body Fuse Block Bolt CAUTION: Refer to Fastener Caution .
2	Rear Body Fuse Block Retainer Procedure Press to unlock
3	Rear Body Fuse Block
