Navigation System
Navigation System

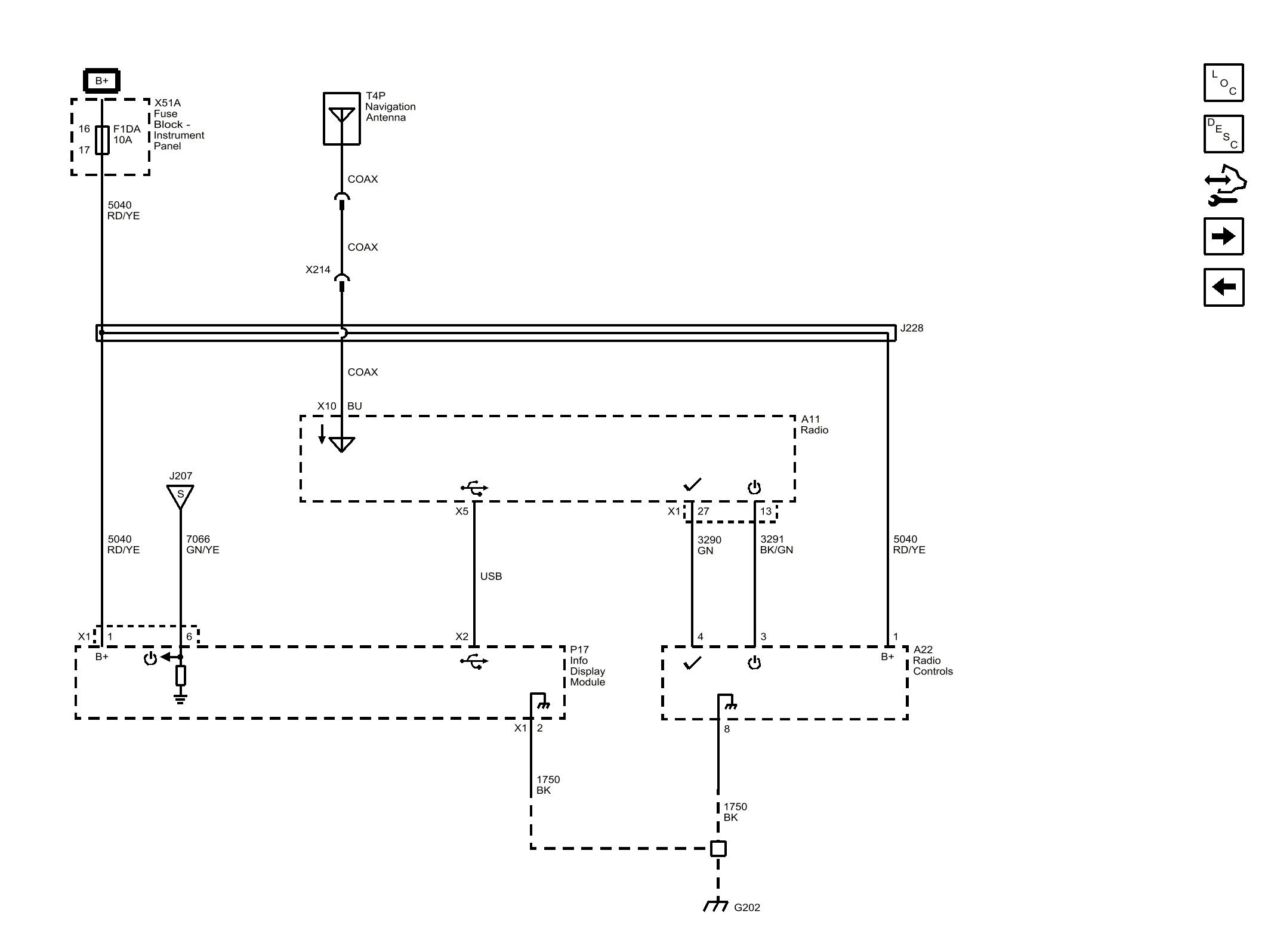

Fig 1: Navigation System
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
