Installation Procedure

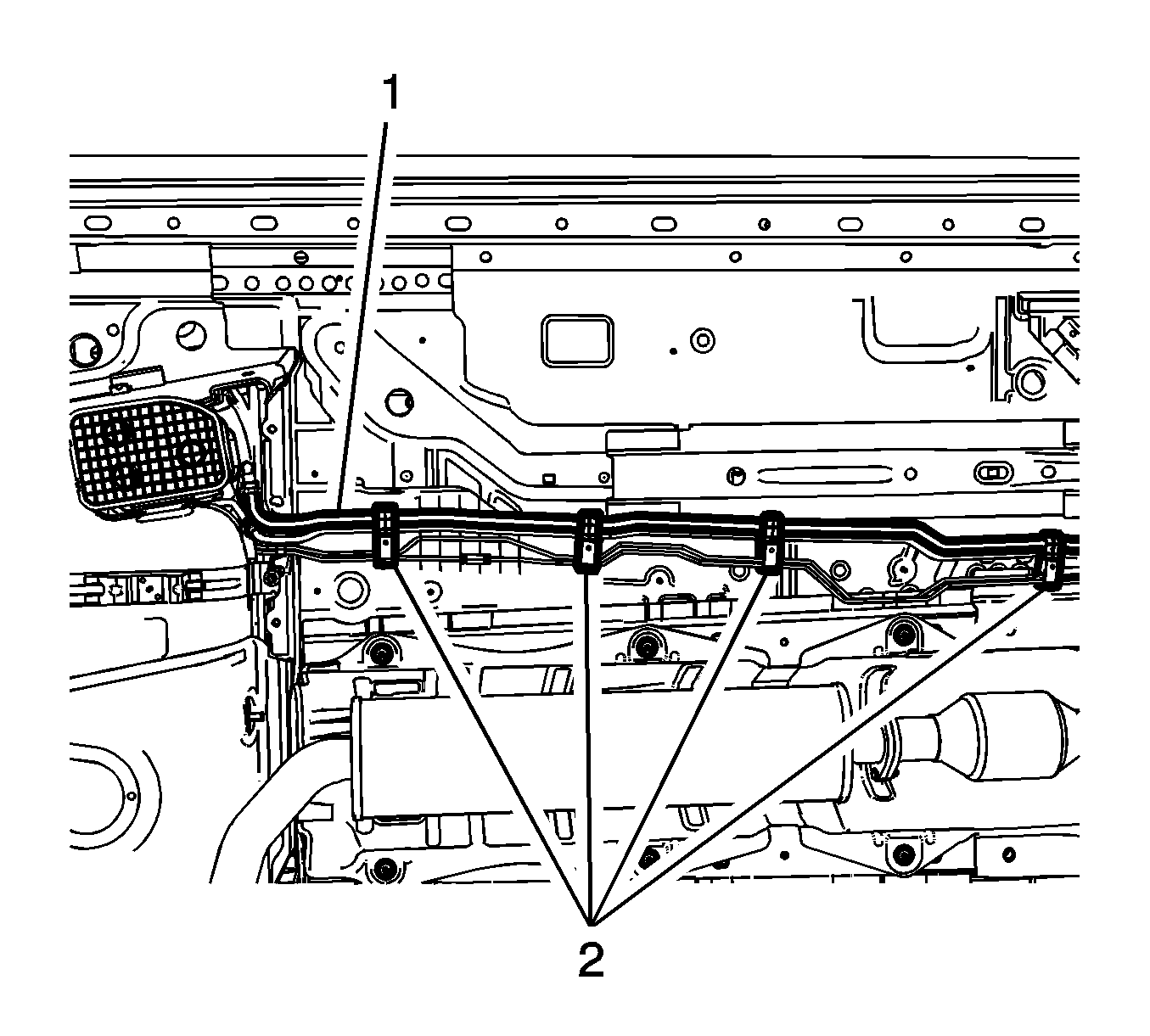

    Fig 1: Fuel Feed Pipe And Retainers
    GM2820662Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe (1) to the brake bundle retainers (2).
  2. Connect the chassis fuel feed pipe (1) to the fuel tank fuel feed pipe . Refer to Plastic Collar Quick Connect Fitting Service .
  3. Connect the fuel pressure sensor connector.
  4. Lower the vehicle.

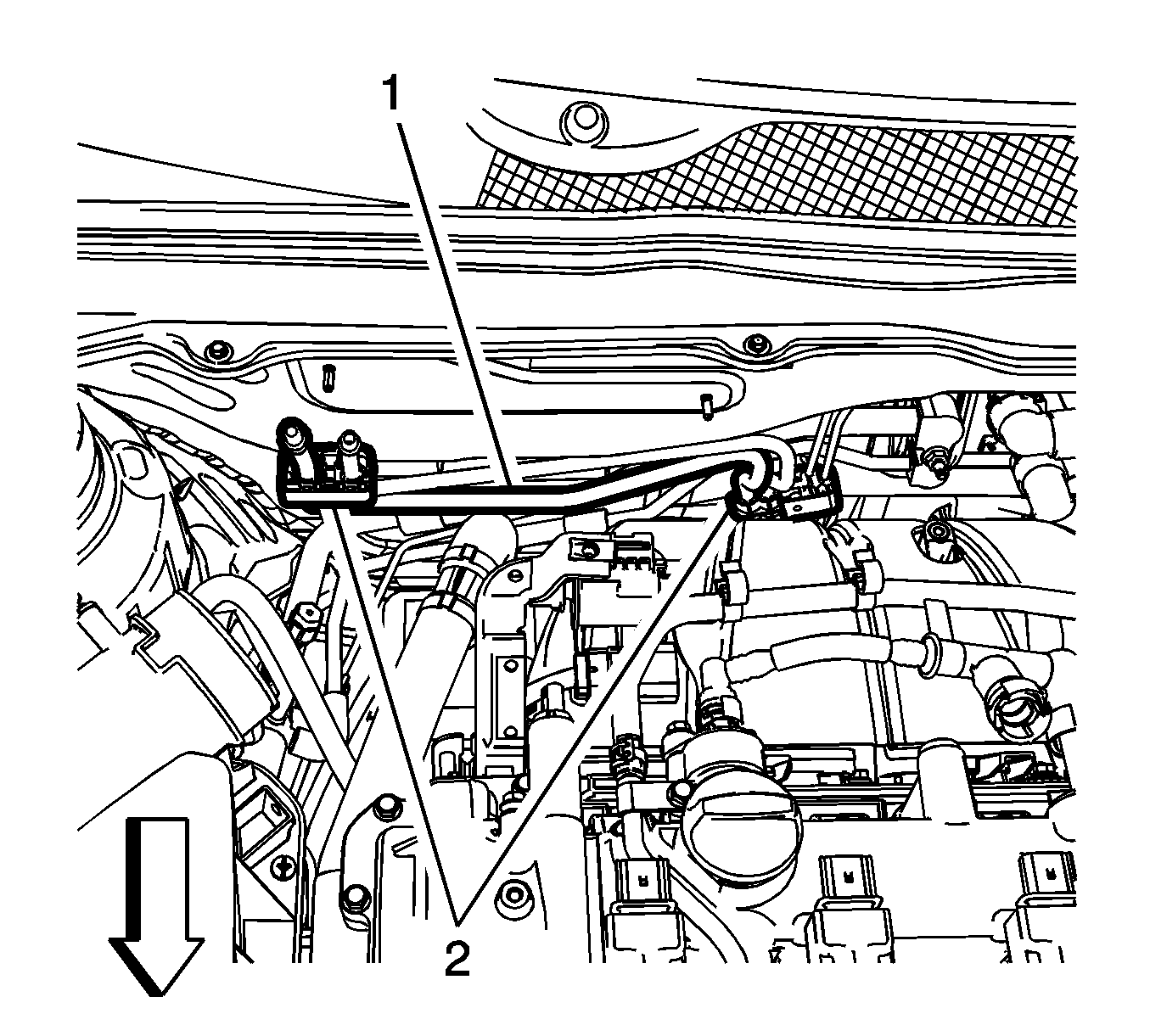

    5. Fig 2: Fuel Feed Pipe
    GM2815640Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel feed pipe (1) to the retainers (2).
  6. Connect the engine fuel feed front pipe to the chassis fuel feed pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Turn the ignition to the on position and check for fuel leaks.
