Turbocharger Control Solenoid Valve Replacement

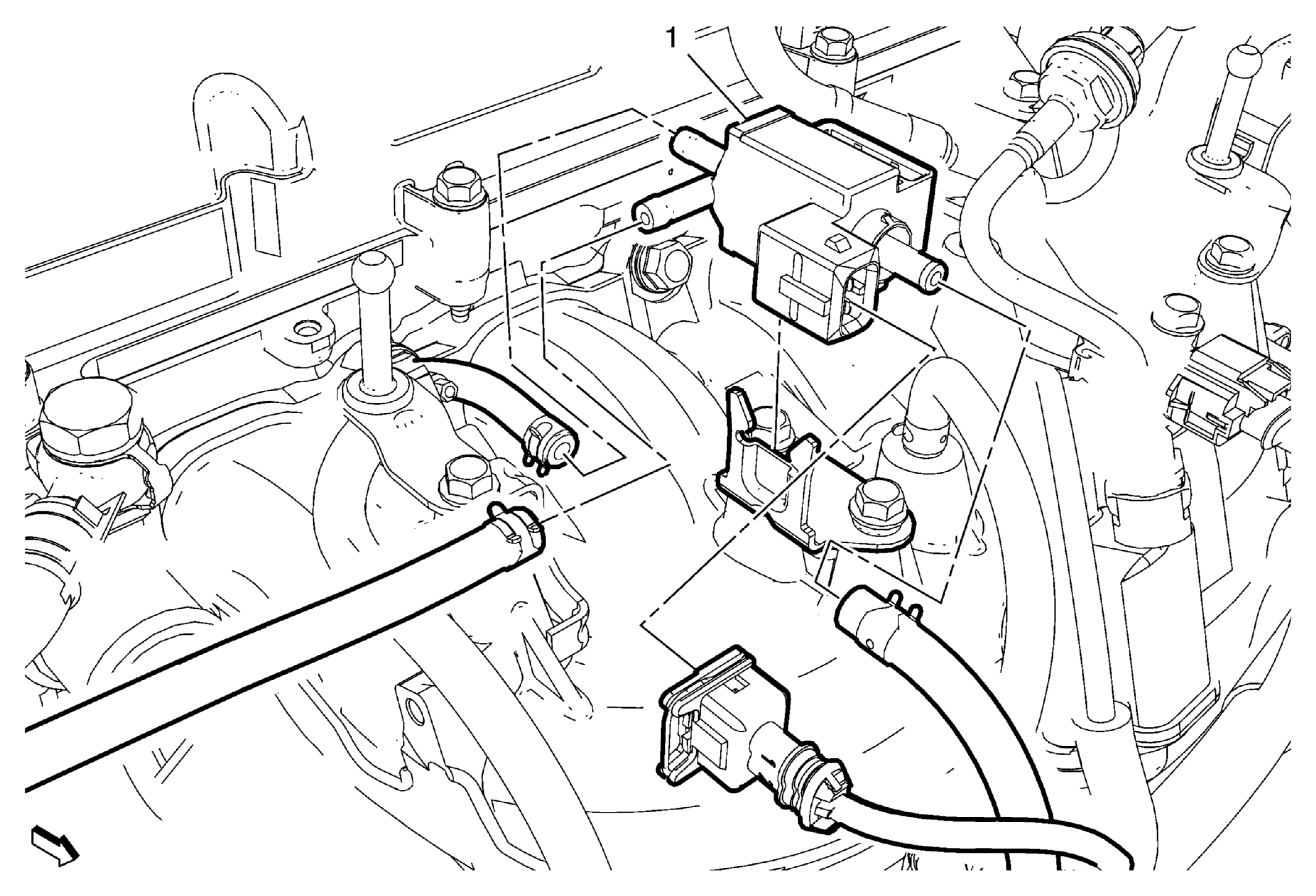

Fig 1: Turbocharger Control Solenoid Valve
GM2739125Courtesy of GENERAL MOTORS COMPANY
Turbocharger Control Solenoid Valve Replacement

Callout Component Name
Preliminary Procedures
Remove engine sight shield. Refer to Engine Sight Shield Replacement .
1 Turbocharger Control Solenoid Valve.

Procedure

  1. Remove the vacuum hose.
  2. Disconnect the electrical connector.
