Installation Procedure

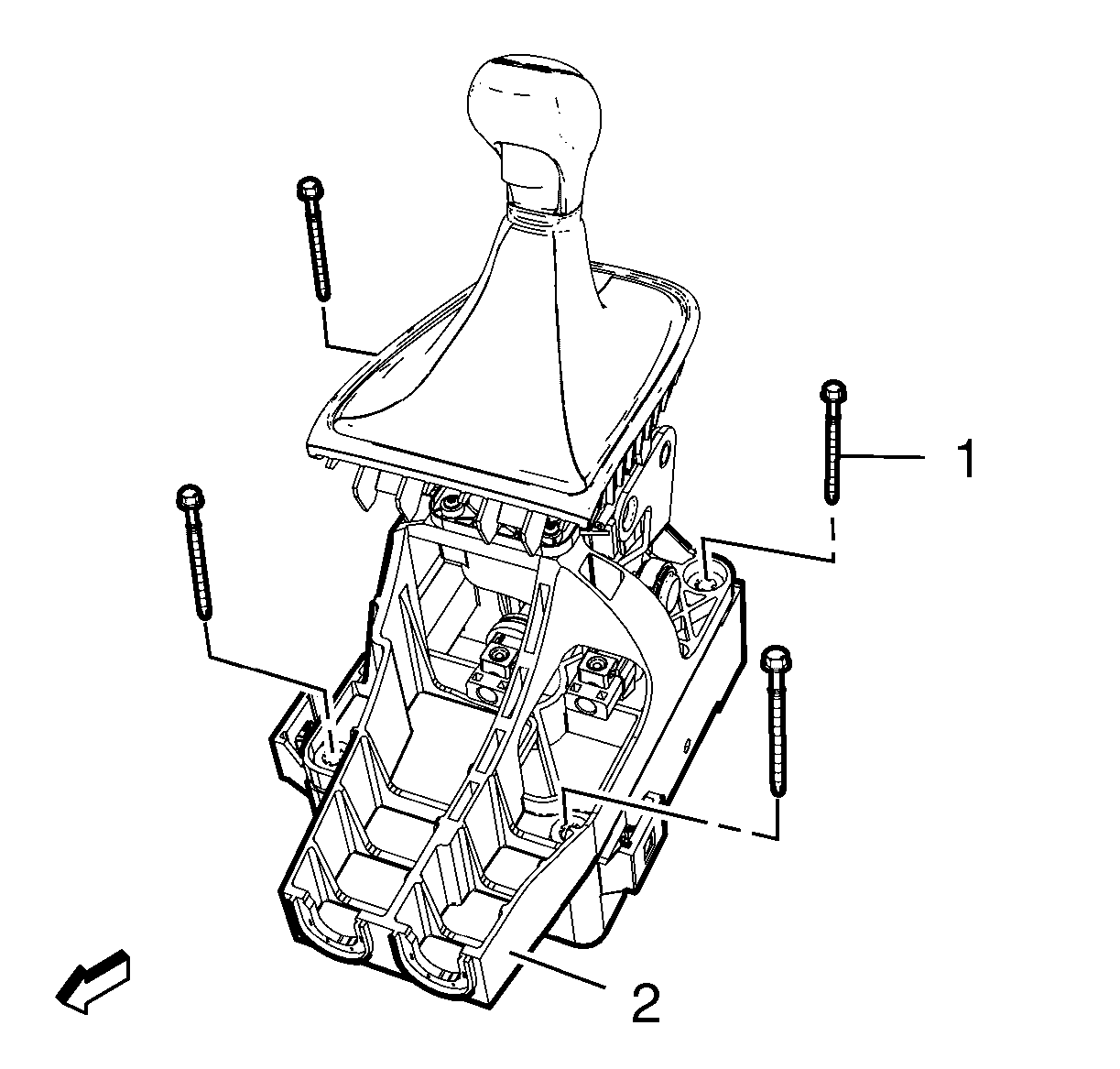

    Fig 1: Transmission Control Lever And Bolts
    GM2191407Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW transmission control lever (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install 4 transmission control lever bolts (1) and tighten to 8 N.m (71 lb in).

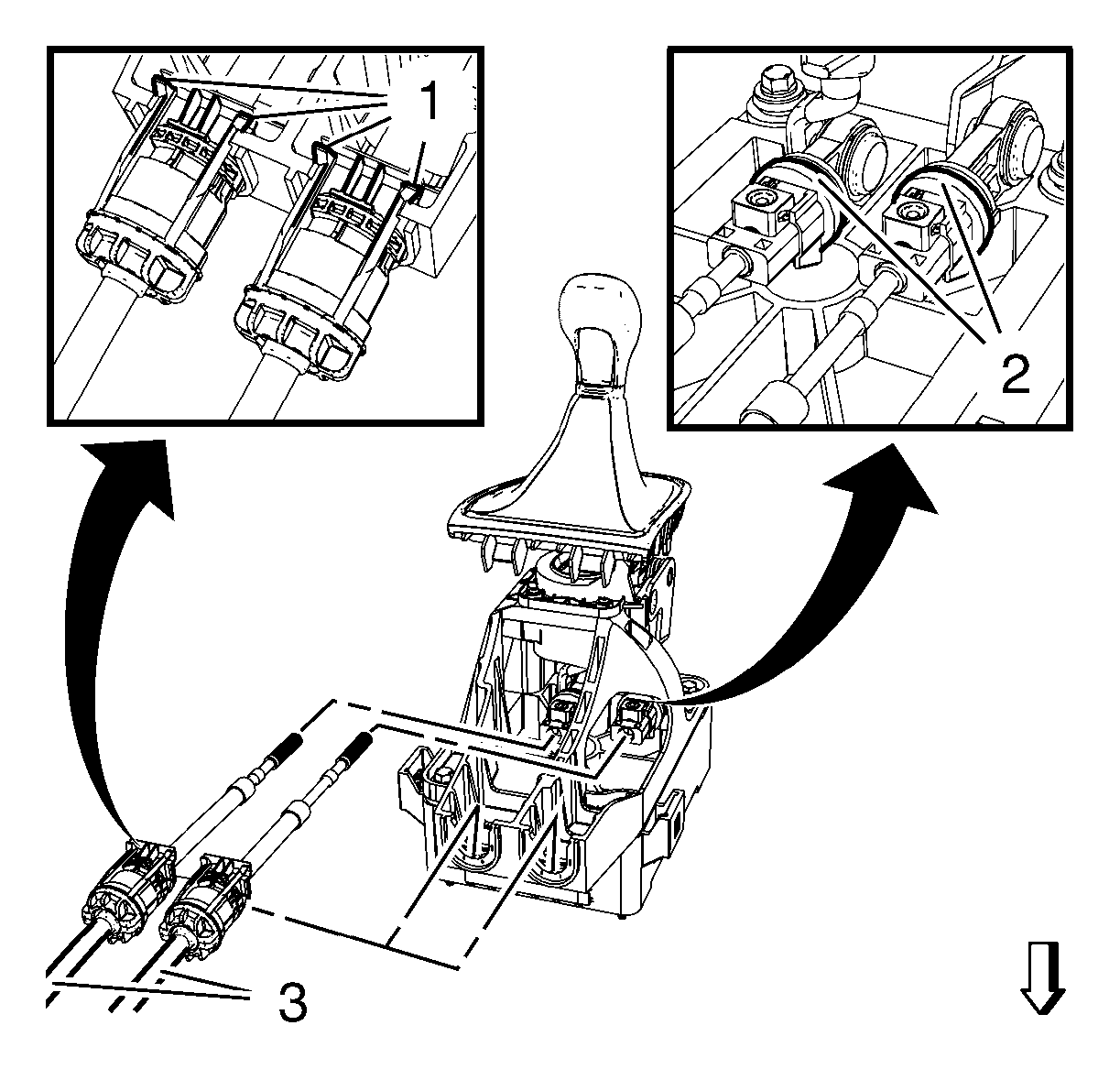

    3. Fig 2: Selector Lever Cable, Adjust Locks And Transmission Control Lever Housing
    GM2191406Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not lock yet.

  3. Slide shift lever and selector lever cable into shift lever and selector lever cable adjust locks (2).
  4. Clip shift lever and selector lever cable (3) into transmission control lever housing (1).
  5. Adjust shift lever and selector lever cable. Refer to Manual Transmission Shift Lever and Selector Lever Cable Adjustment .
